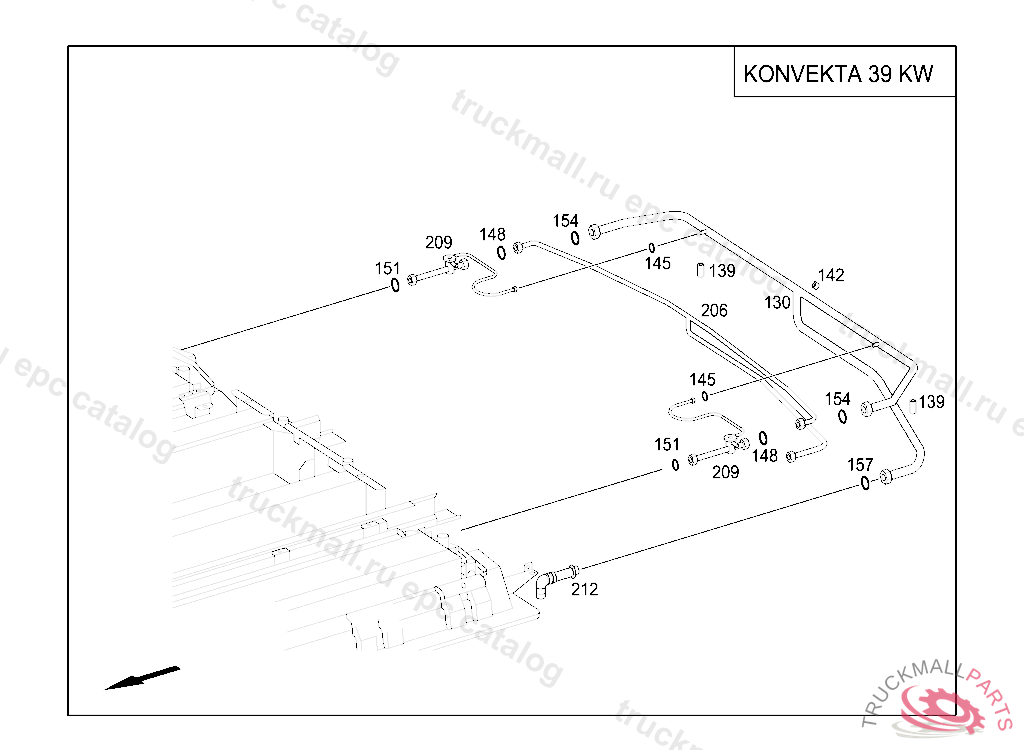

O530 - CITARO GUE 18M, 3-TUERER - 628.287 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
130
PIPE LINED28MM,CU
130
PIPE LINED28MM,AL
139
SLEEVE
142
SPACER SLEEVE. SLEEVE
145
SEAL RING7/16"
148
SEAL RING
151
SEAL RING
154
SEAL RINGTO A 000 831 05 94
157
SEAL RINGTO A 000 831 06 94
206
PIPELINED16MM,AL
206
PIPE LINE
209
VALVE
212
PIPE LINE
999
CONNECTOR
999
COIL SOLENOID VALVE
999
INTERMEDIATE PIECE
999
LINK
999
LINK
999
ADHESIVE LABEL DO NOT ENTER
999
HOSE
999
MOUNTING PLATE
999
RETAINING CLIP
999
PROTECTIVE CAP
999
SCREW , Replaced By: A0008312028
999
FILTER
999
CLIP
999
CABLE HARNESS
999
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PIPE LINE
999
PIPE LINE
999
REFRIGERANT LINE FEED LINE VW 1,AL
999
REFRIGERANT LINE FEED LINE VW 2,AL
999
SEAL RING1-3/16"
999
SEAL RING7/16"
