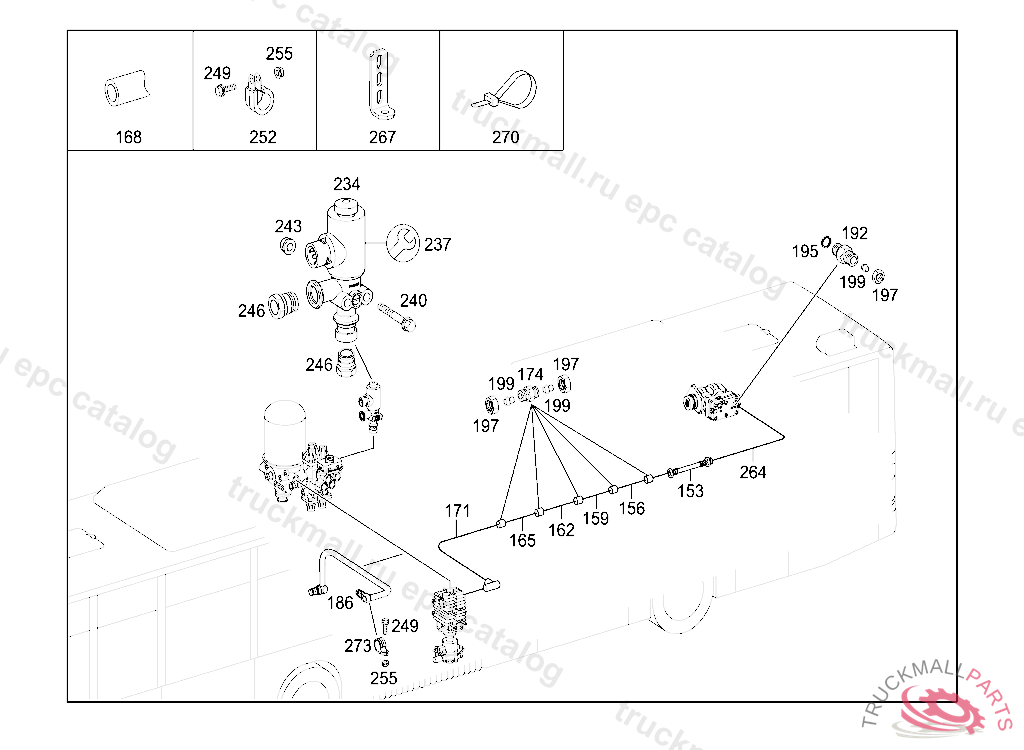

Поз.
Артикул
Описание
153
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
153
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
156
159
162
LINE
165
LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.05.2008
168
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
171
LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.05.2008
174
FITTING BETWEEN THE LINES
174
CONNECTION FITTING , Replaced By: N003902018002
174
CONNECTION FITTING LINE CONNECTIONS
186
LINE
192
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
192
SCREW-IN FITTING , Replaced By: A0029970271
195
SEAL RING LINE TO OIL PUMP
197
SEAL RING LINE TO OIL PUMP
199
CUTTING RINGBL 18
234
VALVE (3/2-WAY SOLENOID VALVE)
237
REPAIR KIT 3/2-WAY SOLENOID VALVE
240
SCREW 3/2-WAY VALVE TO BRACKET
240
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
243
NUT HORN TO BRACKET M8
243
NUT ENGINE MOUNTING M8
246
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
249
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
249
SCREW BRACKET TO SIDE MEMBER M8X20
249
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
249
SCREW BRACKET AND CLAMP M6X20
249
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
249
SCREW BRACKET TO CAB REAR PANEL M 8X20
252
CLAMP LINE MOUNTING 15-18 MM,V 207570
252
CLAMP28/15, Replaced By: A0019951842
252
CLAMP6/15, Replaced By: N000000007509
252
CLAMP50/20MM, Replaced By: N000000007519
252
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
252
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/15, Replaced By: A0019951142
252
CLAMP LINE MOUNTING
252
CLAMP PIPE LINE TO CONDENSER
252
CLAMP CABLE HARNESS MOUNTING
252
MOUNTING CLAMP22/15
252
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/20
252
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RS 18/15T0,8
252
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
252
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
252
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/20
252
MOUNTING CLAMP28/15
252
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
252
CLAMP50/20MM
255
NUT ENGINE MOUNTING M8
255
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
255
NUT BRACKET TO FIRE WALL
255
NUT HORN TO BRACKET M8
264
267
270
LOOM TIE
273
MOUNTING CLAMP28/15
273
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
