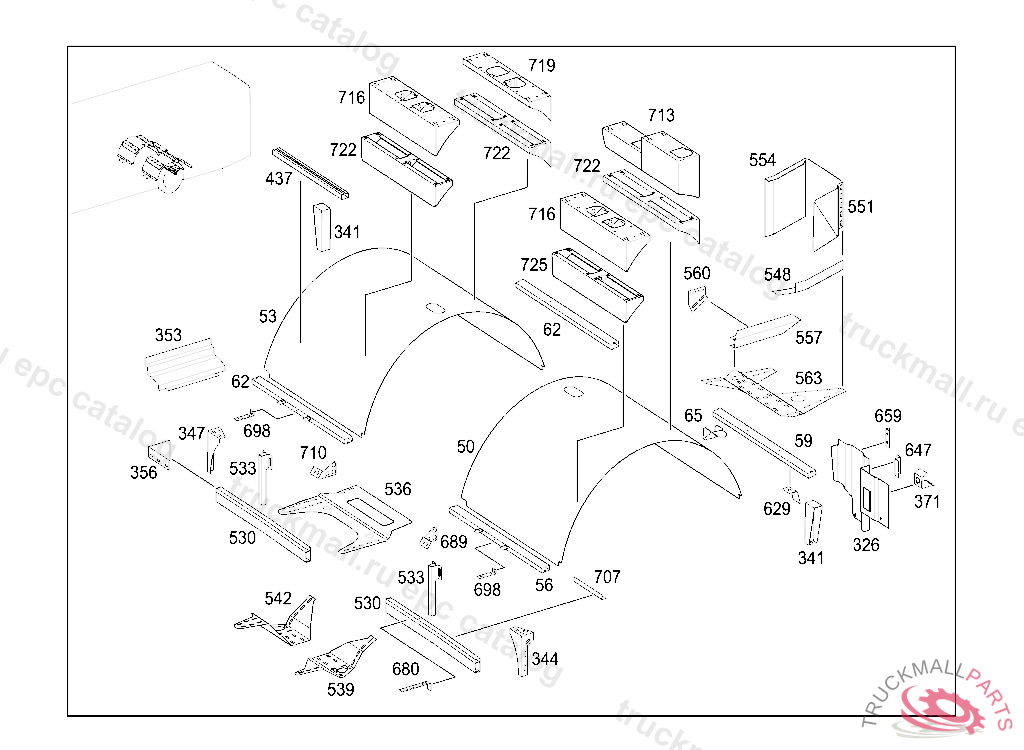

CONECTO 12 M - 628.310 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
50
WEEL ARCH REAR LEFT
53
WEEL ARCH REAR RIGHT
56
CROSS MEMBER
59
CROSS MEMBER
62
CROSS MEMBER
65
326
SCREENING
341
CONNECTION
344
CONNECTION
347
CONNECTION
353
RAIL BATTERY COMPARTMENT
356
REINFORCEMENT
371
BRACKET ENGINE COVERING BOTTOM
437
METAL SECTION PANELLING, TO BE ADAPTED DURING ASSEMBLY
530
CROSS MEMBER
533
STRUT
536
GUSSET PLATE
539
GUSSET PLATE
542
GUSSET PLATE
548
551
554
557
560
563
629
BRACKET
647
659
659
BRACKET
680
BRACKET
689
BRACKET REAR AXLE BRAKE HOSE
698
BRACKET
707
BRACKET
710
BRACKET RIGHT BRAKE HOSE
713
SEAT BOX
716
SEAT BOX
719
SEAT BOX
722
SEAT BOX
725
SEAT BOX
