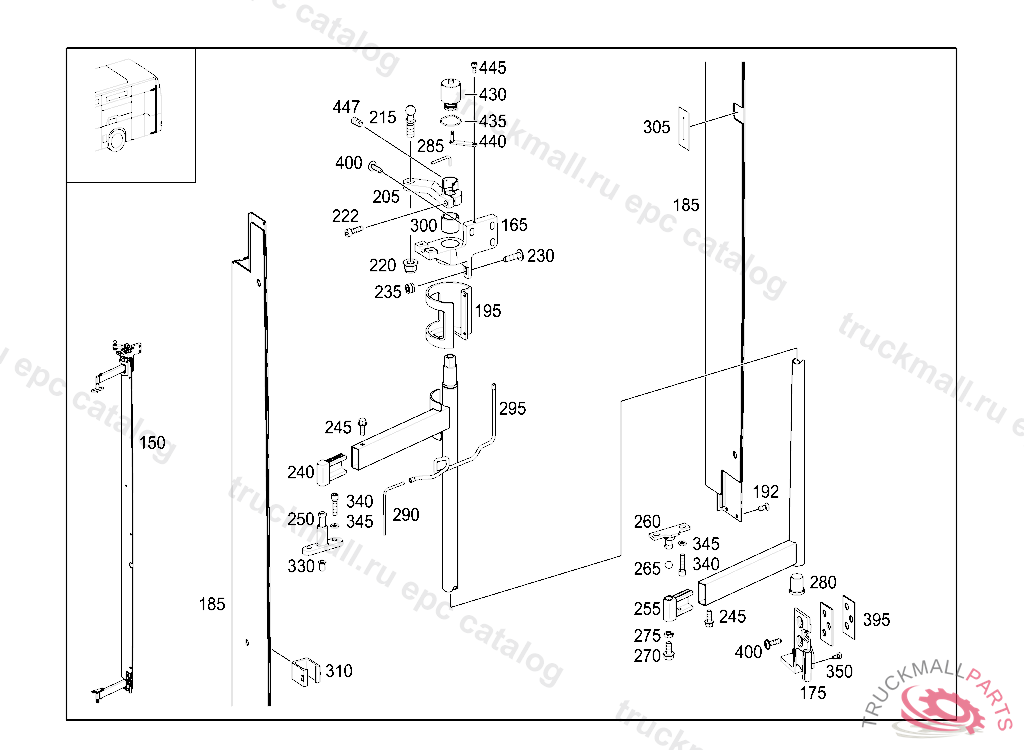

CONECTO 18 M - 628.320 - 72 DOORS
Поз.
Артикул
Описание
150
PILLAR FRONT
165
MOUNTING CENTRAL A6289920203, ORDER ADDITIONALLY:A6289920203
175
MOUNTING
185
COVERING
192
SCREWM5X12 TX25
195
COVERING
205
SUPPORTING ARM
215
SCREW
220
NUT SUPPORT TO FRAME
220
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
222
SCREW
230
STUD
235
235
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
240
MOUNTING
245
SCREW BRACKET TO SIDE MEMBER M8X20
250
MOUNTING
255
MOUNTING
260
MOUNTING
265
BALL
270
SCREWM 10X20
275
NUT
280
MOUNTING
285
SUPPORTING ARM TOP
290
SUPPORTING ARM
295
HOSE , TO BE ADAPTED DURING ASSEMBLY
300
BUSHING
305
PLATE
310
MOUNTING
330
BUSHING
340
SCREW W SOCKET DRIVEM8X20
340
SCREW
345
WASHER
350
HEXAGON HEAD BOLT BOTTOM
395
PLATE3 MM
395
PLATE2MM
400
SCREW
430
POTENTIOMETER
435
SEAL RING
440
BRACKET
445
SCREW
447
SCREW
999
