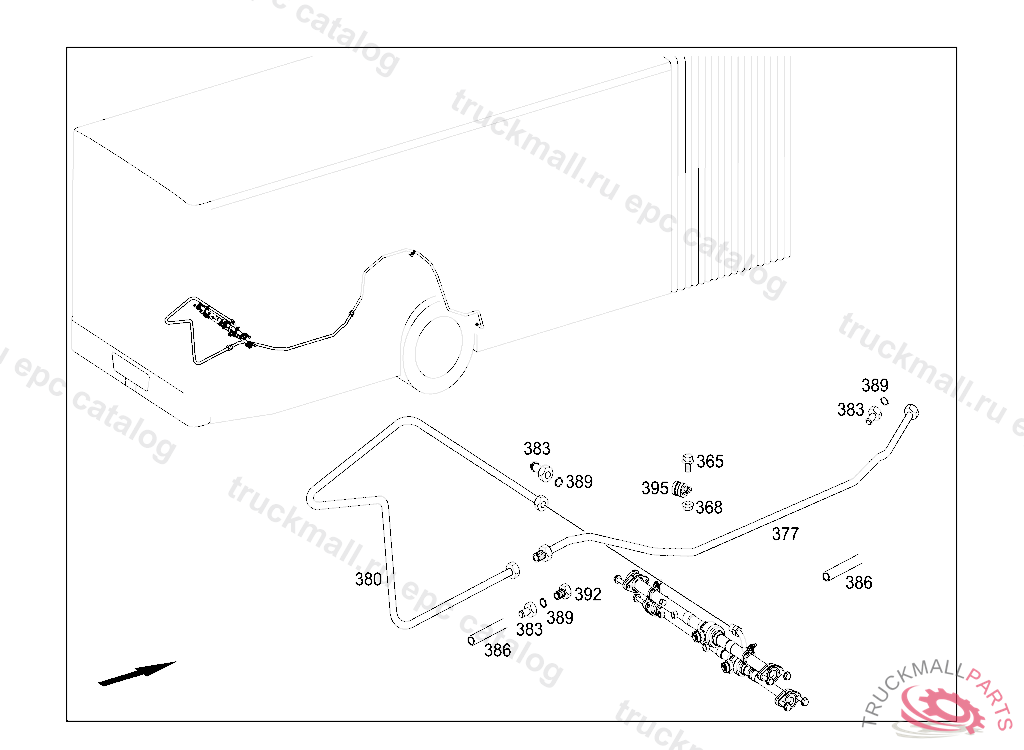

CONECTO 18 M - 628.320 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
365
SCREW BRACKET AND CLAMP M6X20
368
NUT BRACKET TO FIRE WALL
377
380
383
PIPE SOCKET3/4"
386
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
389
SEAL RING FROM LIQUID TANK TO T-FITTING
392
FITTING3/4"
395
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
395
CLAMP LINE MOUNTING 15-18 MM,V 207570
395
CLAMP BRAKE HOSE BRACKET
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
