Поз.
Артикул
Описание

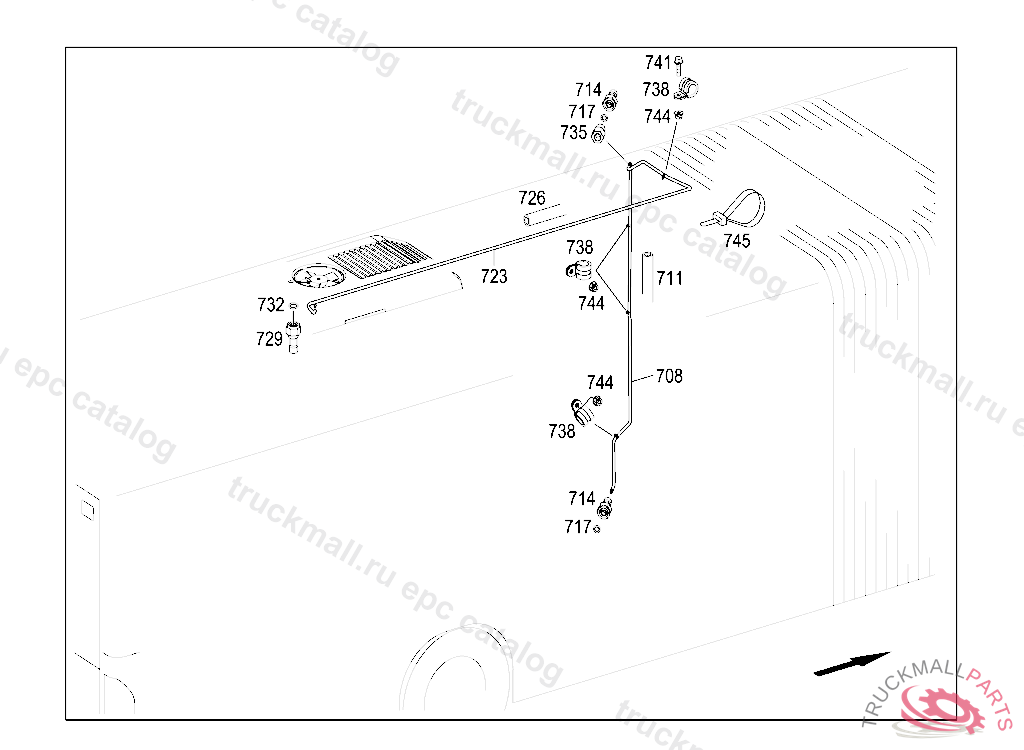

708
PIPE LINE
711
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
714
PIPE SOCKET5/8"-16
717
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
723
PIPE LINE
726
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
729
PIPE SOCKET5/8"-16
732
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
735
PIPE SOCKET5/8"-18
738
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
738
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
738
CLAMP LINE MOUNTING
741
SCREW BRACKET AND CLAMP M6X20
744
NUT BRACKET TO FIRE WALL
745
LOOM TIE LINE MOUNTING
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
