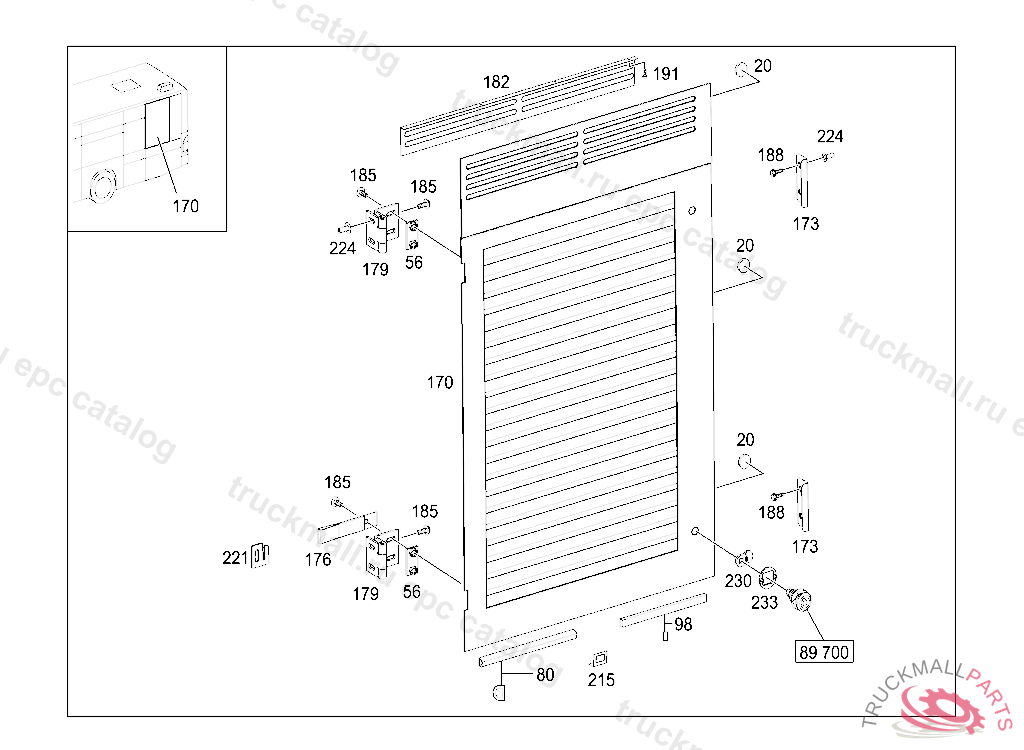

CONECTO 18 M - 628.320 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
20
RUBBER BUFFER
56
PLATE
80
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
SEALING TAPE. ADHESIVE TAPE AIR INTAKE PIPE TO BRACKET
170
173
176
REBOUND STRAP
179
HINGE
182
185
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X16
188
SCREW , Replaced By: N914146006102
188
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
191
TAPPING SCREW3.5X16
215
ANGLE REAR LEFT 26X21X10MM
221
BRACKET FRONT LEFT
224
RIVETED NUTM 6X1.0
230
LATCH
233
TRIM RING
