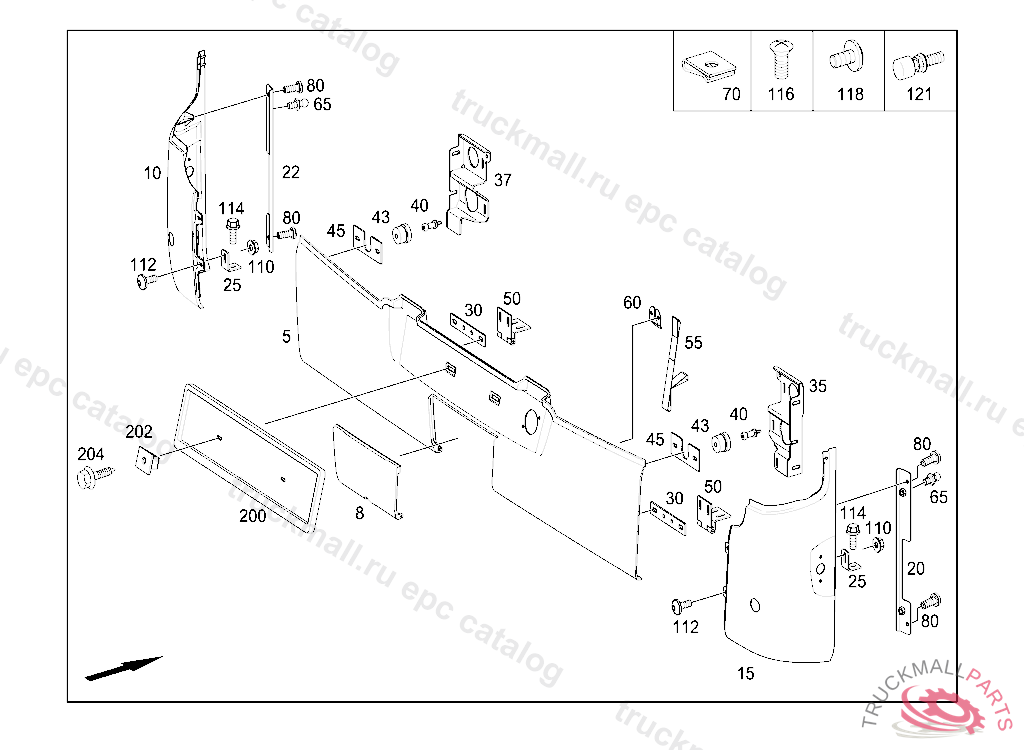

Поз.
Артикул
Описание
5
BUMPER RR
5
BUMPER RR
5
REAR BUMPER FACE BAR
5
BUMPER RR
5
BUMPER RR , Replaced By: A6288804771
8
BUMPER JOINT COVER
10
REAR BUMPER FACE BAR LEFT,WITH REAR FOGLAMP
10
REAR BUMPER FACE BAR LEFT,WITH REAR FOGLAMP
15
REAR BUMPER FACE BAR RIGHT,LESS REAR FOGLAMP
15
REAR BUMPER FACE BAR RIGHT,LESS REAR FOGLAMP
20
BRACKET RIGHT
22
BRACKET LEFT
25
ANGLE CABLE HARNESS MOUNTING WEBASTO HEIZUNG
30
BRACKET LEFT AND RIGHT
35
BRACKET RIGHT
37
BRACKET LEFT
40
BALL PIN LEFT AND RIGHT
43
MOUNTING CLIP COVER ATTACHMENT, J 20140210 V 20140210
45
PLATE
50
HINGE LEFT AND RIGHT
55
BAND300X21 MM
60
BRACKET BUMPER
65
CLEVIS PIN W HEAD
70
CLIP FASTENER
80
SHEET METAL SCREW. SCREWM6 X 16
80
SCREW, SPECIAL SHAPE REAR FOGLAMP M6 X 16
110
NUT , Replaced By: N913023006001
112
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
114
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
114
SCREW , Replaced By: N914146006102
116
SCREWM4X16, Replaced By: N000000000482
116
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
118
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
121
BUFFER , Replaced By: A2019880511
200
BRACKET LINCENSE PLATE BRACKET
202
LOCK LICENSE PLATE TO BUMPER
204
COMBINATION BOLT VACUUM LINE TO SHOCK ABSORBER CONSOLE
999
RIVETED NUT
