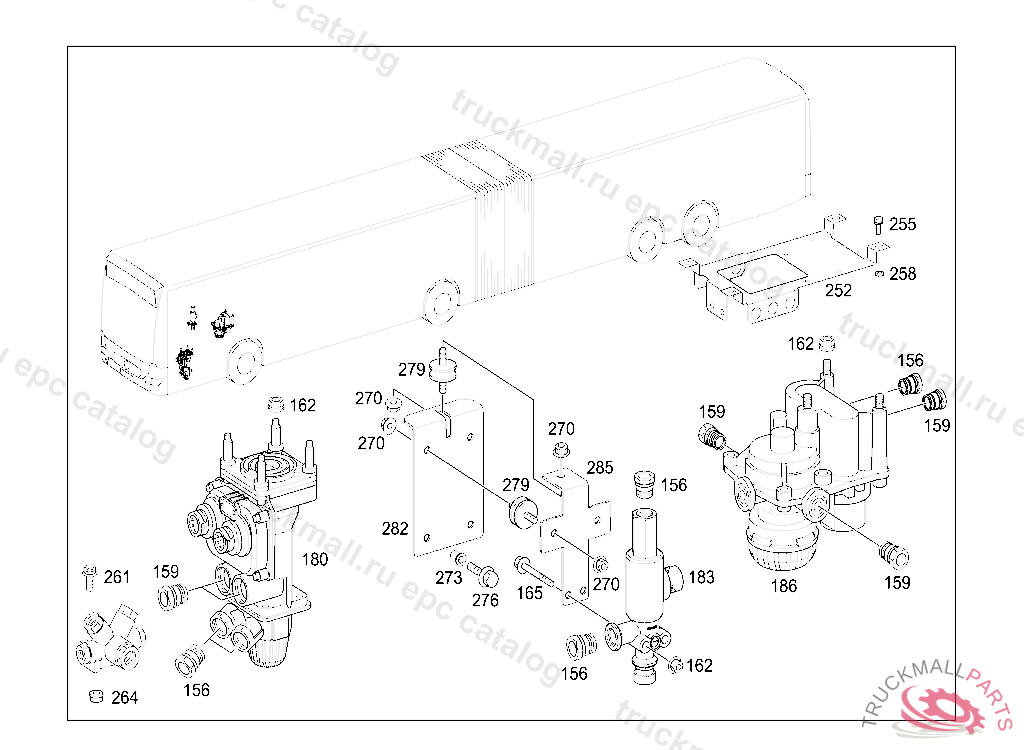

Поз.
Артикул
Описание
156
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
159
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
159
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
162
NUT HORN TO BRACKET M8
165
SCREW 3/2-WAY VALVE TO BRACKET
165
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
180
BRAKE VALVE
183
VALVE (3/2-WAY SOLENOID VALVE)
186
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
252
BRACKET
255
SCREW BRACKET TO SIDE MEMBER M8X20
255
SCREW BRACKET TO CAB REAR PANEL M 8X20
258
WASHER BRACKET TO CAB REAR PANEL
261
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
261
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
264
NUT BRACKET TO FIRE WALL
264
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
270
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
273
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
276
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
276
SCREW , Replaced By: N910143008002
279
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
282
BRACKET
285
BRACKET
