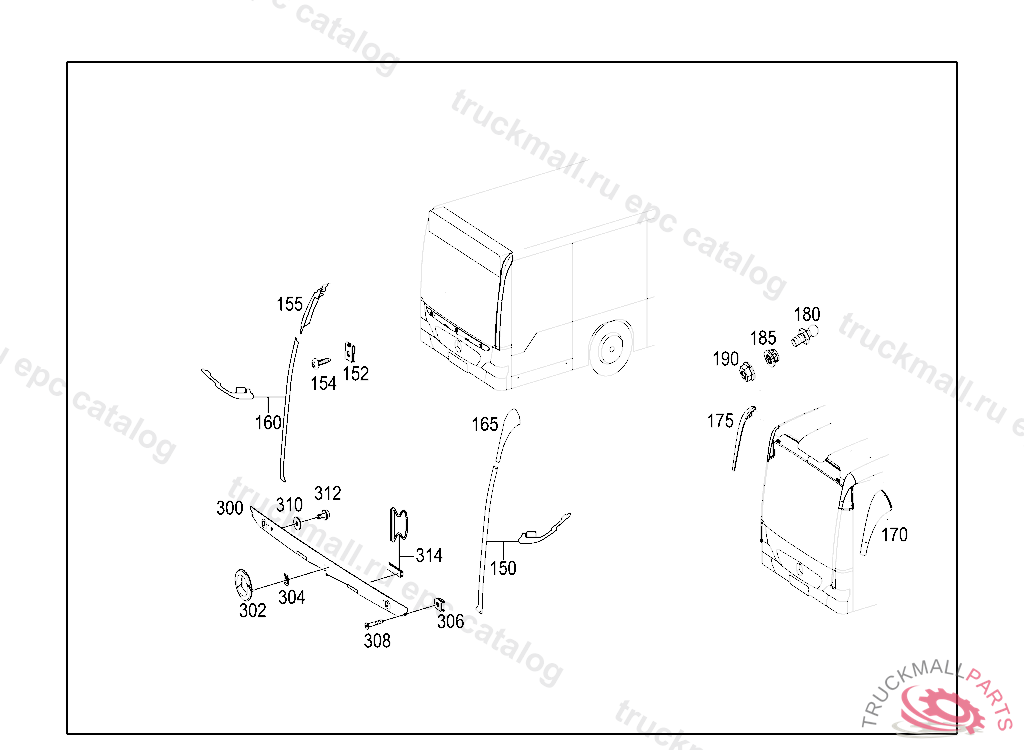

O530 - CITARO GL 20M, 4-TUERER - 628.486 - 69 COVERING AND LINING
Поз.
Артикул
Описание
150
COVERING
152
LOCK FUEL LINE
154
TAPPING SCREW
155
COVERING TOP RIGHT
155
COVERING TOP RIGHT
160
COVERING
165
COVERING TOP LEFT
165
COVERING TOP LEFT
170
COVERING
175
COVERING
180
CLEVIS PIN W HEAD
185
PLUG CONNECTION
190
NUT , Replaced By: N913023006001
300
COVERING
302
BADGE COWL TOP FLAP
304
LOCK
306
LOCK PROTECTIVE GRILLE
308
TAPPING SCREW4.8X32
310
WASHER LINE MOUNTING
312
HEXAGON HEAD BOLT
314
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
