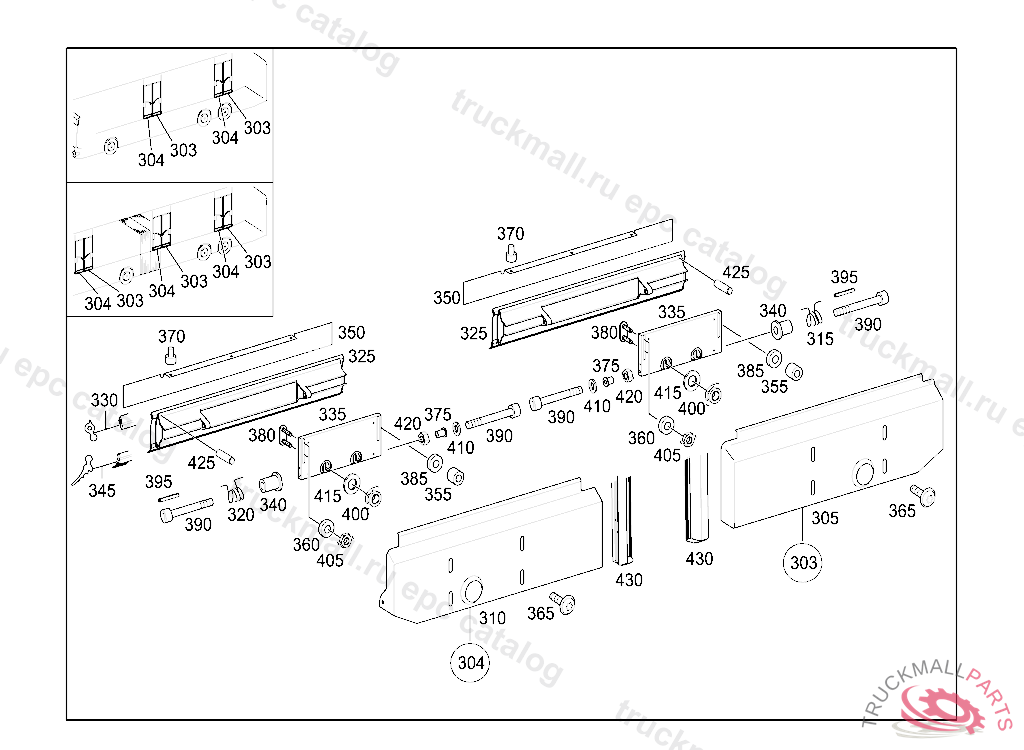

O530 - CITARO GL 20M, 4-TUERER - 628.486 - 73 DOORS
Поз.
Артикул
Описание
303
LEDGE FRONT
304
LEDGE REAR
305
COVERING
310
COVERING
315
SPRING
320
SPRING
325
LEDGE LEFT BOTTOM
325
LEDGE RIGHT
325
LEDGE
330
LEDGE
335
MOUNTING
340
BUSHING
345
LEDGE
350
RAIL
355
BRACKET
360
THREADED UNION
365
STUD
370
SCREWM5X10MM
375
BUSHING
380
PLATE
385
LOCK
390
CAP BOLT. SCREW OIL PRESSURE RELIEF VALVE TO CRANKCASE M 8X55
390
SCREW
395
ROLL PIN. SCREW
400
HEXAGON NUT. SCREWM 12
405
NUT , Replaced By: N913023006001
405
SCREW
410
WASHER
410
WASHER PUMP TO CONSOLE
415
WASHER
420
SCREWM 8
420
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
425
SCREW
430
METAL SECTION
430
METAL SECTION
999
WELT , Replaced By: A0079896185
999
EDGE GUARD SECTION , Replaced By: A0099875751
999
CONNECTOR2X1, 500MM
999
ADHESIVE
999
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
999
SEAL LEFT BOTTOM
999
SEAL RIGHT BOTTOM
