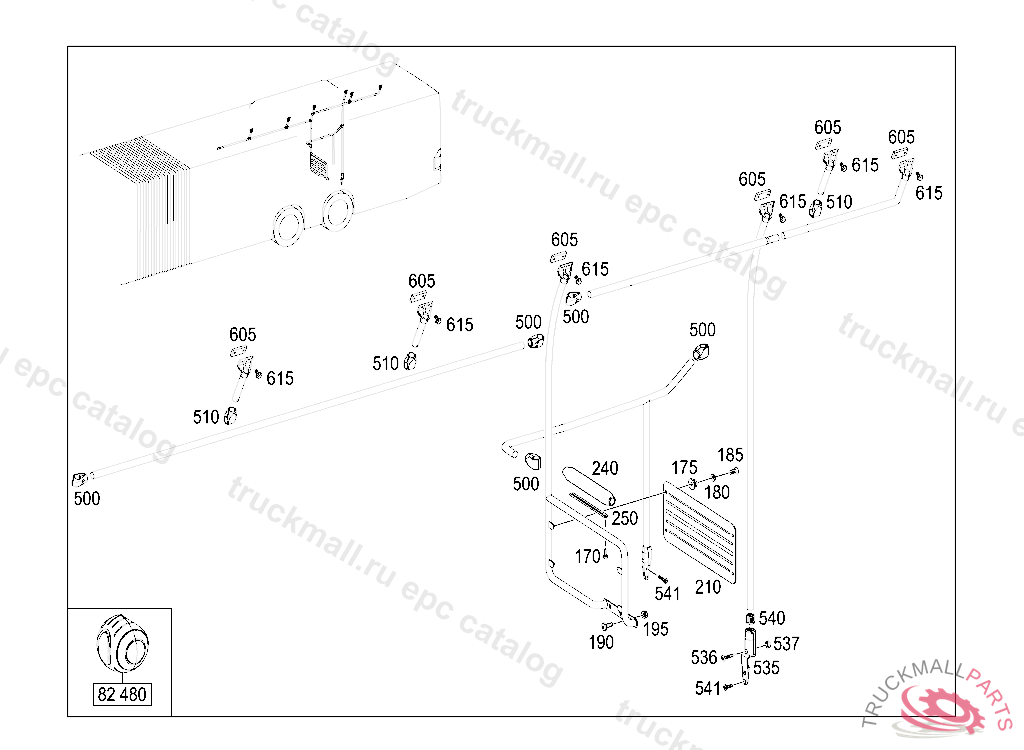

O530 - CITARO GL 20M, 4-TUERER - 628.486 - 81 APPOINTMENTS

Поз.
Артикул
Описание
170
N000000000456
TAPPING SCREW CLOTHES-HOOK TO BODY
175
A3577110043
MOUNTING
180
A6669900040
WASHER
185
A0019909920
SCREWM6X12 TX30
190
A0009901129
SCREWM 8X22, T40
195
N913023008006
NUT SHAFT TO THROTTLE VALVE, 401-403 , 421-423 , 441-443550204 407 , 409 , 427 , 429 , 44739905 404 , 424 , 44411324
210
A3117112510
GLASS PANE
240
A6288151365
PAD
250
A3068150262
LEDGE LEFT AND RIGHT
250
A0039851551
METAL SECTION CHIN PROTECTION, ORDER BY THE METER
500
A6288150214
BRACKET
510
A6288150414
BRACKET , .......I.......INO.7E87I.......I II
535
A6288102314
BRACKET
536
N000000002192
HEXALOBULAR BOLTM8X45
537
N304032008012
HEXAGON NUT. NUT L.H. THREAD
540
A6288150617
BUSHING
541
N000000002740
HEXALOBULAR BOLTM10X40
541
N000000002250
HEXALOBULAR BOLTM8X30
605
A6288150011
PLATE
615
N914112008032
SCREW COVER TO AXLE HOUSING
