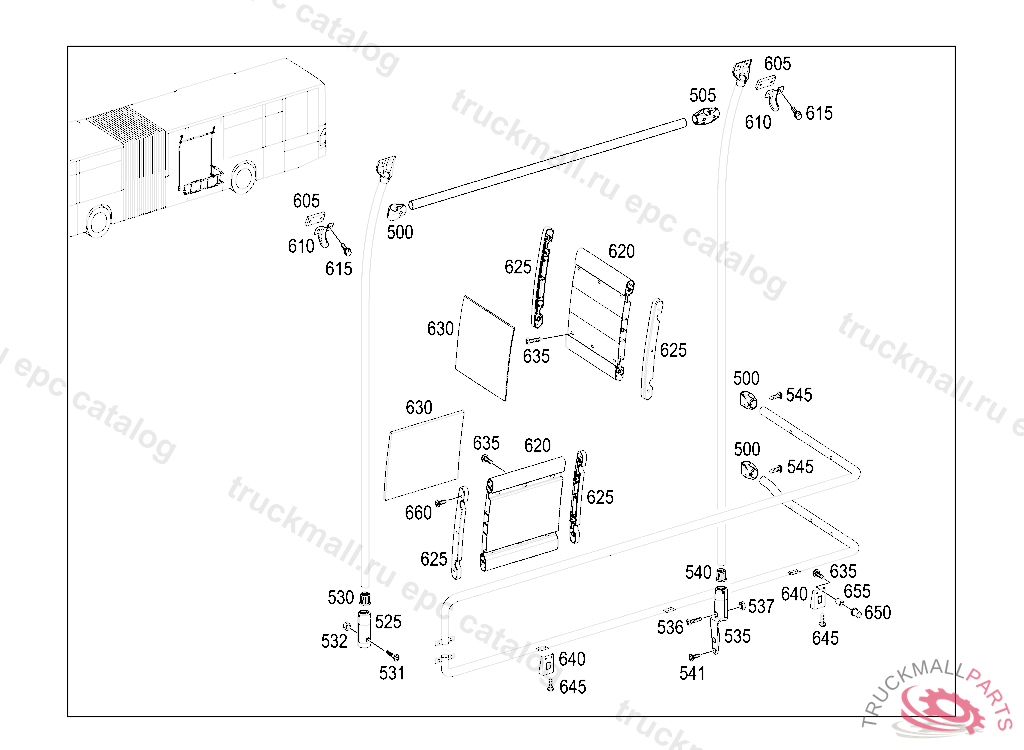

O530 - CITARO GL 20M, 4-TUERER - 628.486 - 81 APPOINTMENTS

Поз.
Артикул
Описание
500
A6288150214
BRACKET
505
A6288150314
BRACKET GRIP RAIL MOUNTING, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
525
A6288106214
BRACKET
530
A6288150617
BUSHING
531
N000000002192
HEXALOBULAR BOLTM8X45
532
N304032008012
HEXAGON NUT. NUT L.H. THREAD
535
A6288106314
BRACKET
536
N000000002192
HEXALOBULAR BOLTM8X45
537
N304032008012
HEXAGON NUT. NUT L.H. THREAD
540
A6288150617
BUSHING
541
N000000002250
HEXALOBULAR BOLTM8X30
545
N000000000483
TAPPING SCREW4,2X16
605
A6288150011
PLATE
610
A6288150714
BRACKET
615
N914112008032
SCREW COVER TO AXLE HOUSING
620
A6288100039
LEDGE
625
A6288150940
COVERING
630
A6288101385
PAD
635
N000000001422
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
640
A6288153912
ANGLE
645
N000000001147
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
650
N913010006106
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
655
A3579914040
SPACER TUBE
660
A0009901429
SCREWM 6X35
999
A0009901729
SCREWM8X40
999
A1269911240
SPACER TUBE COOLING WATER LINE TO TRANSVERSE PIPE, 442-536458 SEE SPECIAL VERSION 082950
999
N000000003120
HEXALOBULAR BOLTM8X16
999
N913010008101
RIVETED NUT AT CROSS MEMBER, FROM CHASSIS 352291 EXCEPT FOR 352332,352759,353163,353868,354161 ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169, 351284,351434,351903,352001,352271,352272
