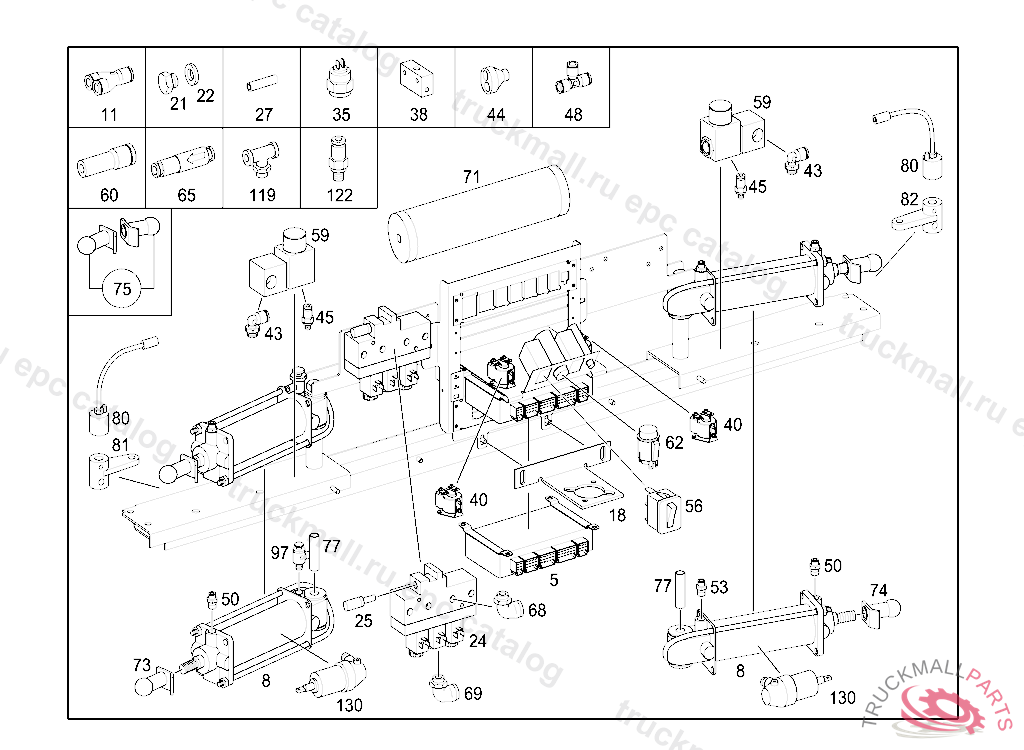

Поз.
Артикул
Описание
5
ELECTRONICS DOOR CONTROL
8
DOOR CYLINDER TOP,ABOVE DOOR
11
CONNECTOR
18
BRACKET
21
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
21
SCREW PLUGROCKINGER,TYP 59 U150
22
SEAL RING LINE CONNECTION
24
VALVE
24
SOLENOID VALVE , Replaced By: A0007607078
25
DAMPER
27
HOSE1M, ORDER BY THE METER
35
SWITCH (DIAPHRAGM) 4.0 BAR
40
PRESSURE WAVE SWITCH , EXHAUST STOCK OF OLD PART NUMBER FIRST
40
PRESSURE WAVE SWITCH PRESSURE WAVE CONTROL, Replaced By: A0008214771
40
SWITCH , Replaced By: A0008213371
44
SCREW CONNECTION DELIVERY LINE 6 MM
48
T-FITTING FROM EMERGENCY COCK TO REGULATING VALVE 6 MM
50
FITTINGM 12X1,5 , D6 ,D1,0
53
FITTINGM 12X1,5 , D6 , D1,1
56
SWITCH
60
FITTING
62
PUSH BUTTON SWITCH UNIPOLAR
68
FITTING DIA., 6MM, M12X1,5
69
FITTING DIA., 6 MM, M5
75
BALL SOCKET
77
SLEEVE
80
POTENTIOMETER SWIVEL BAR,TOP
81
LEVER REAR
82
LEVER REAR
97
SCREW CONNECTION
119
FITTINGM 12X4.5, D 6 MM
122
FITTING
999
SUPPORTING PLATE DOOR I
999
SUPPORTING PLATE DOOR I
999
ELECTRIC CABLE
999
ELECTRIC CABLE
