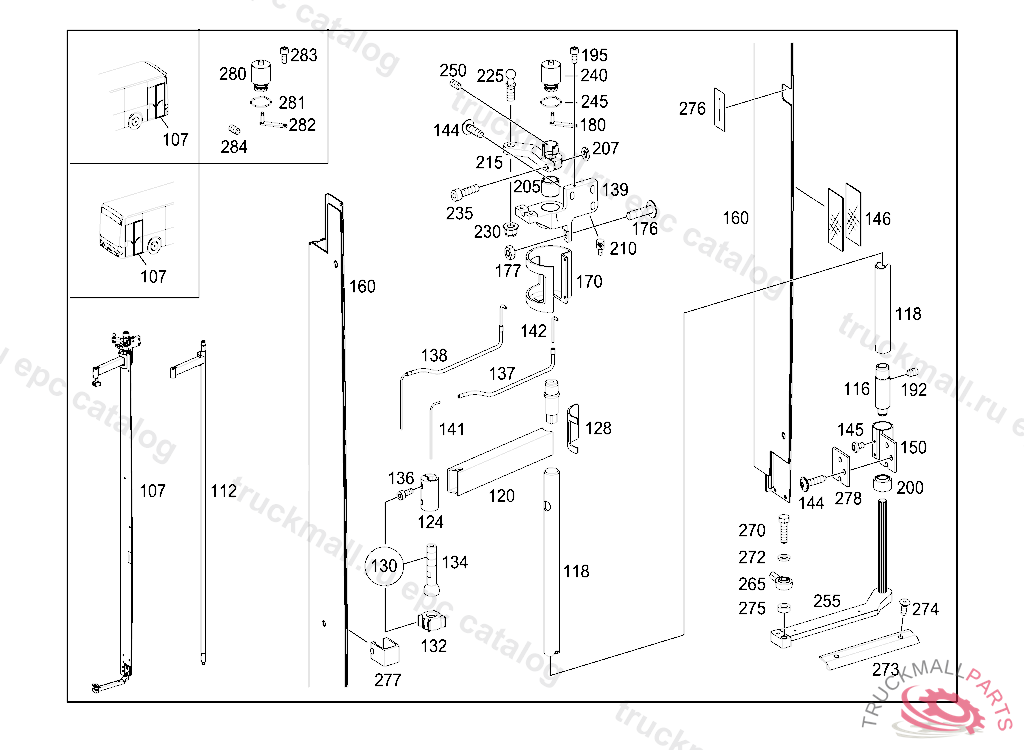

O 530 - CITARO K - 628.490 - 72 DOORS
Поз.
Артикул
Описание
137
HOSE , TO BE ADAPTED DURING ASSEMBLY
139
MOUNTING CENTRAL A6289920203, ORDER ADDITIONALLY:A6289920203
142
SUPPORTING ARM TOP
170
COVERING
176
HEXALOBULAR BOLT MOUNTING PARTS M4X16
176
STUD
177
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
205
BUSHING
215
SUPPORTING ARM
225
SCREW
230
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
235
SCREW
276
PLATE
277
MOUNTING
278
PLATE3 MM
278
PLATE2MM
280
POTENTIOMETER
281
SEAL RING
282
BRACKET
283
SCREW
284
SCREW
