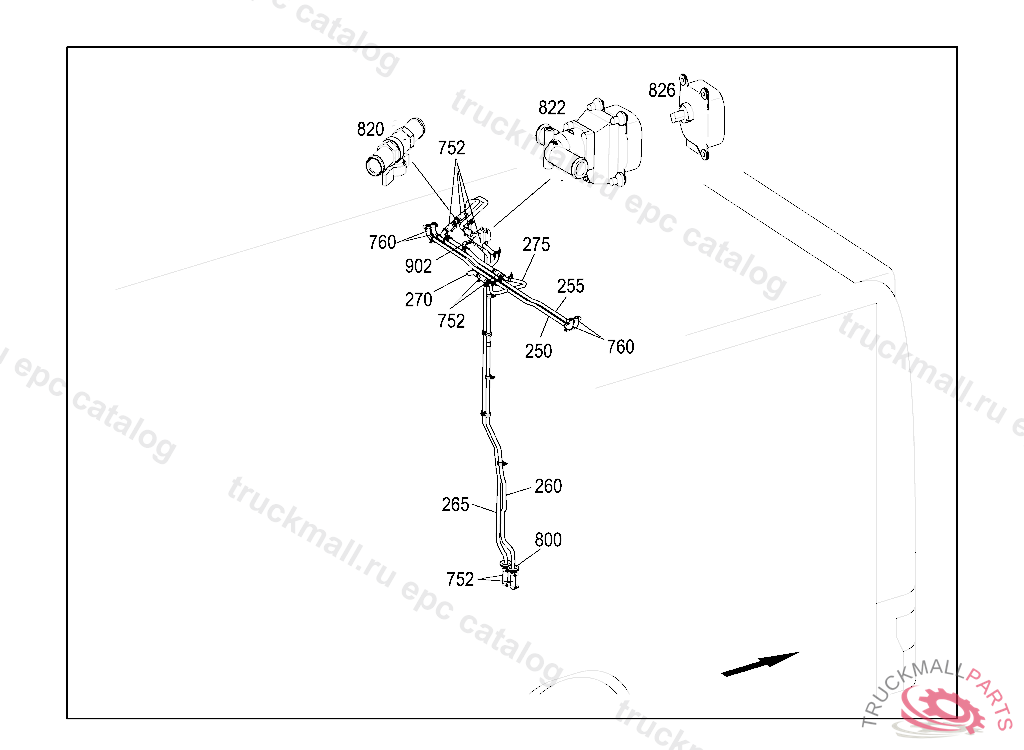

O 530 - CITARO K - 628.490 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
250
HEATER PIPE FEED
255
HEATER PIPE RETURN
260
265
270
PIPE LINE
275
PIPE LINE
752
HOSE ,D 209702
752
HOSE22X31X100MM
752
HOSE28X37X100 MM, Replaced By: N000000004989
752
HOSE22X31X240MM, TO BE ADAPTED DURING ASSEMBLY
752
HOSE18X27X100MM
752
HOSE22X31X160MM
752
HOSE22X31X80MM
760
MOLDED HOSE 90-DEGREE ARC 18MM
800
GROMMET
820
SLIDE
820
SHUT-OFF VALVE3/4"-22
822
VALVE THREE-WAY VALVE
822
VALVE 2/2 -WAY VALVE
826
SERVO-D.C. W.GEARBOX
826
ELECTRIC MOTOR , Replaced By: A0068207842
902
BRACKET
