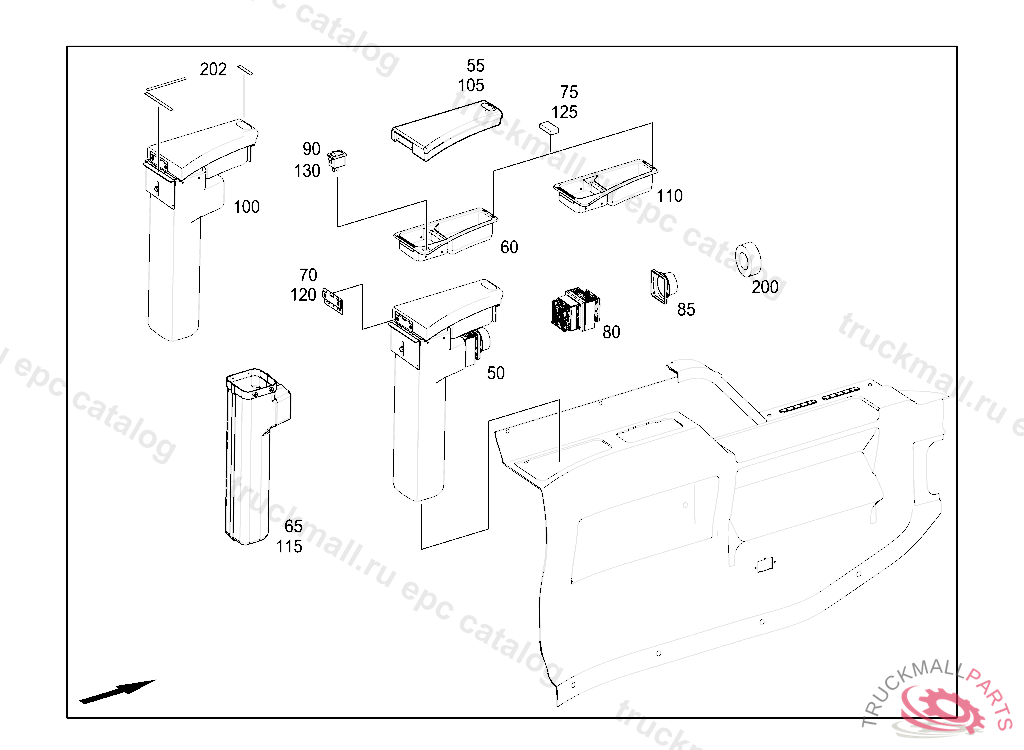

O 530 - CITARO K - 628.490 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
50
COOL BOX
55
RIM
60
HOUSING UPPER SECTION
60
HOUSING , Replaced By: A0008303540
65
HOUSING
70
HINGE80 MM
75
FASTENER WITH MAGNET 5X10X2MM
80
COOLING SYSTEM
85
SCOOP
90
SWITCH
100
COOL BOX
105
RIM
110
HOUSING UPPER SECTION
110
HOUSING , Replaced By: A0008303640
115
HOUSING
120
HINGE80 MM
125
FASTENER WITH MAGNET 5X10X2MM
130
SWITCH
200
GASKET CROSS MEMBER TO SIDE MEMBERS
202
ADHESIVE TAPE9 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
DIODE
