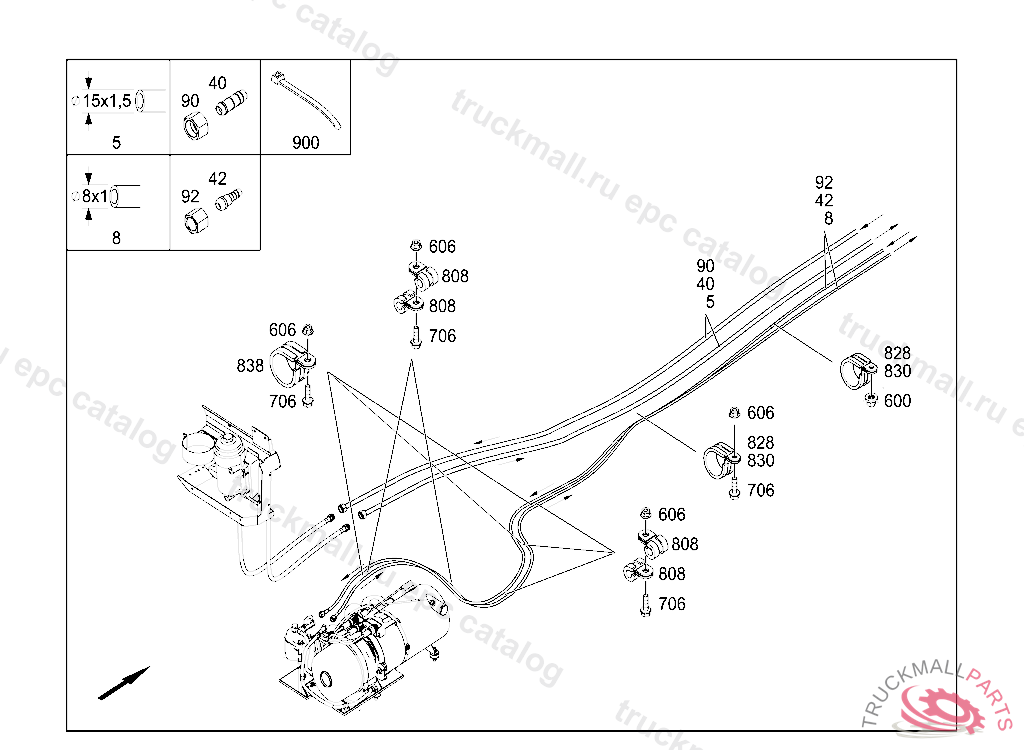

O 530 - CITARO K - 628.490 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
5
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
40
FITTING FUEL LINES
42
FITTING RETURN LINE
90
NUT
92
NUTBL 8
600
NUT COVERING TO CAB FIRE WALL
606
NUT BRACKET TO FIRE WALL
706
SCREW BRACKET AND CLAMP M6X20
808
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
828
MOUNTING CLAMP28/15
828
CLAMP28/15, Replaced By: A0019951842
900
LOOM TIE
900
CABLE TIE LINE MOUNTING 375X8.4MM
