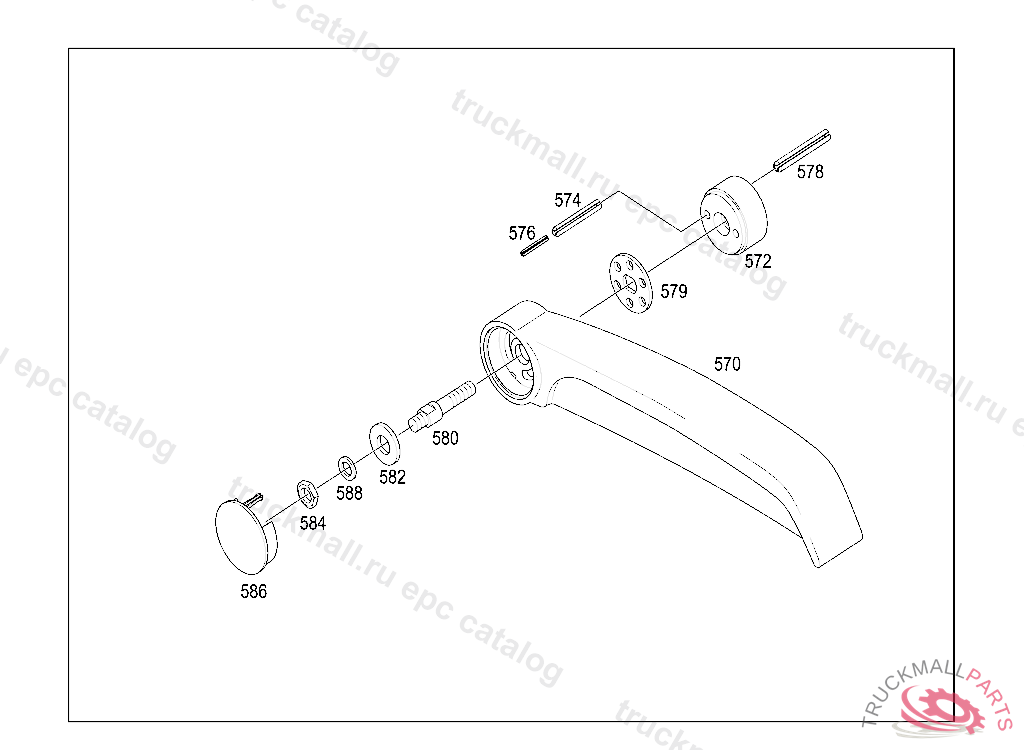

O 530 LOW ENTRY 12M, 3-TUERER - 628.584 - 95 SEATS
Поз.
Артикул
Описание
570
ARMREST LESS COVER LEFT OR RIGHT, NO.7365I.......I.......I.......I.......I....... I
572
SUPPORT WIDE
574
ROLL PIN6 X 28
576
ROLL PIN3,5 X 22
578
ROLL PIN8 X 32
579
SLIDE
580
SCREW THREADED PIN
582
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
584
NUT
586
CAP LEFT AND RIGHT, NO.7365I.......I.......I.......I.......I....... I
588
UNDERLAYER
