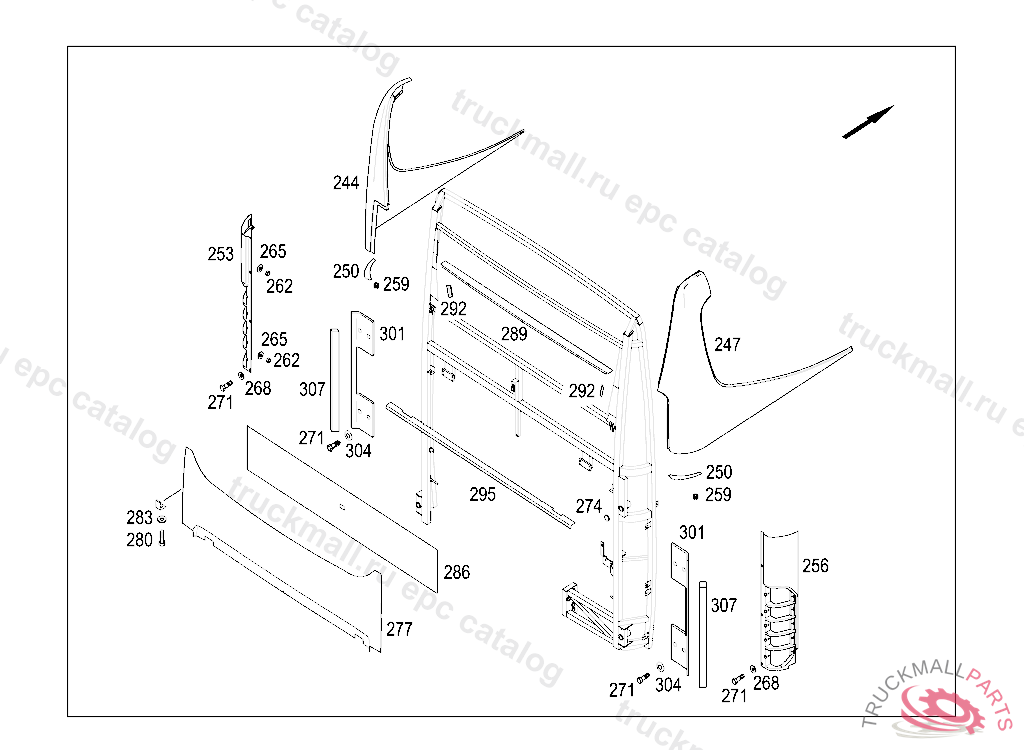

O580 TRAVEGO 15RH - 629.001 - 64 REAR PANEL
Поз.
Артикул
Описание
244
SIDE PART LEFT TOP
247
SIDE PART RIGHT TOP
247
SIDE PART REAR DOOR
250
PARTITION PANEL LEFT AND RIGHT
253
LAMP RECESS LEFT
256
LAMP RECESS RIGHT
259
GROMMET8MM
262
NUT
265
WASHER EXHAUST MUFFLER TO STRAP
268
WASHER FRAME MOUNTING
271
SCREW OIL PIPE TO SLEEVE VALVE
274
COVER
277
REAR STYLING CONV. KIT
280
SCREW SUPPORT TO FENDER
283
WASHER EXHAUST MUFFLER TO STRAP
286
PARTITION PANEL2090X367MM
289
ANGLE REAR WINDOW PANE 1843LG
292
ANGLE REAR WINDOW PANE 90LG
295
ANGLE INSULATION 2030LG
301
RAIL
304
WASHER LINE MOUNTING
307
SEAL
999
RIVETED NUT
999
RIVETED NUT
999
WELDED PINSM6X25
999
ADHESIVELOCTITE262
