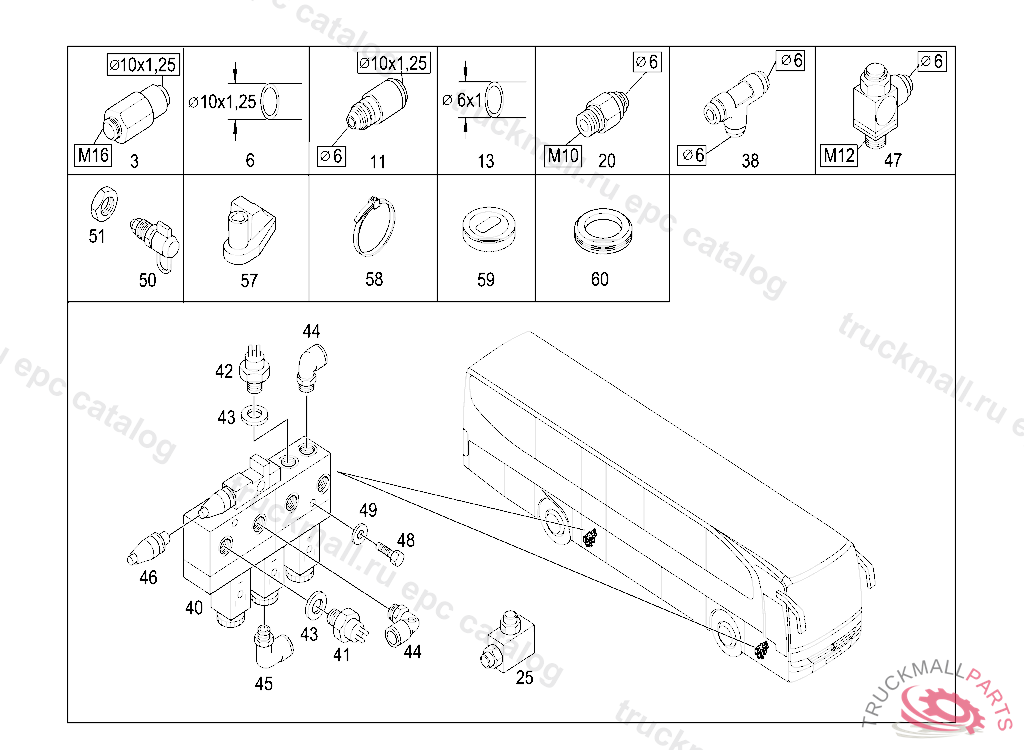

Поз.
Артикул
Описание
3
VALVE
6
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
THREADED UNION
13
PLASTIC PIPE RISING PIPE 4X6 MM
20
FITTING
25
VALVE SHUTTLE VALVE
38
T-FITTING
40
SOLENOID VALVE , Replaced By: A0007607078
40
VALVE
41
SWITCH , Replaced By: A0005452710
42
SWITCH3.5 BAR
43
SEAL
44
FITTING DIA., 6MM, M12X1,5
45
FITTING DIA., 6 MM, M5
46
DAMPER
47
FITTING
48
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
49
WASHER HYDRAULIC LINE TO CAB
50
TEST CONNECTION
51
NUTM16X1.5 RAUFOSS
57
RETAINING CLIP
58
LOOM TIE LINE MOUNTING 280 MM
59
GROMMET
60
GROMMET
