Поз.
Артикул
Описание

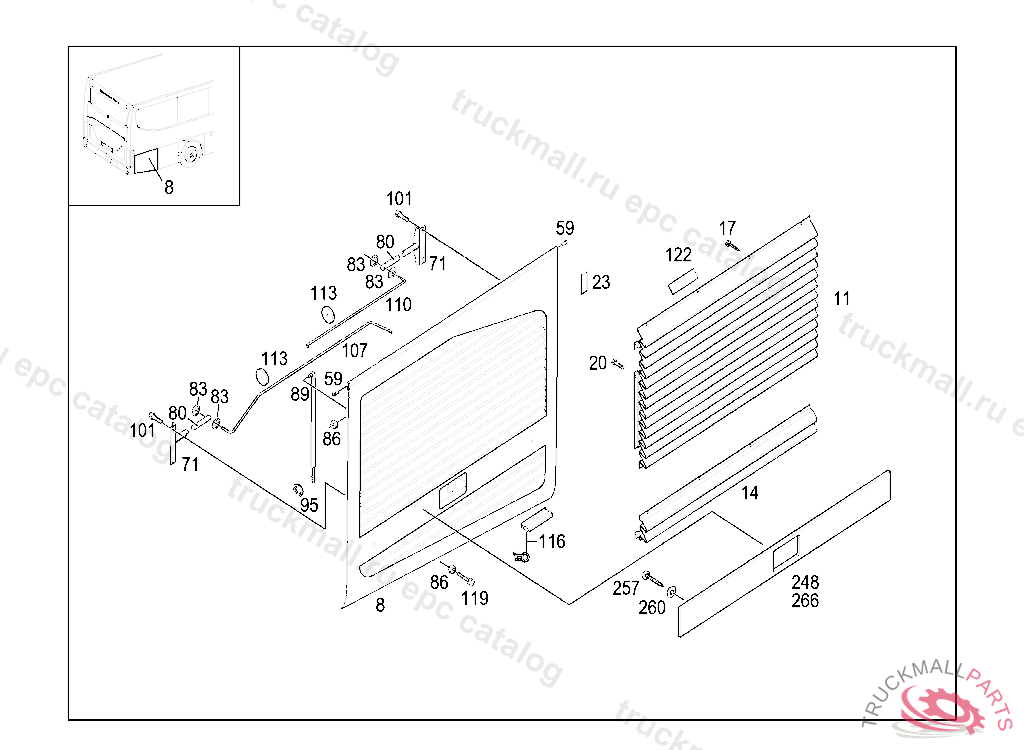

8
FLAPOHNE LEISTE,WEB 629001 13 520112
8
FLAPMIT LEISTE,WEB 629001 13 520112
8
FLAPOHNE LEISTE,WEB 629001 13 520111
8
FLAPMIT LEISTE,WEB 629001 13 520111
11
VENTILATION PART
14
VENTILATION PART
17
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
20
HEXALOBULAR BOLTM5X12
23
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
59
BUSHING
71
GUIDE
80
PIN
83
LOCK
86
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
89
SPRING PNEUMATIC SPRING 330N
95
LOCK RING
101
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
107
STRUTL547.5 MM
110
STRUTL452 MM
113
WASHER
116
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
119
RUBBER BUFFER
122
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
248
LEDGE
257
TAPPING SCREW2,9X13
260
WASHER
266
FOIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
WELT , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
