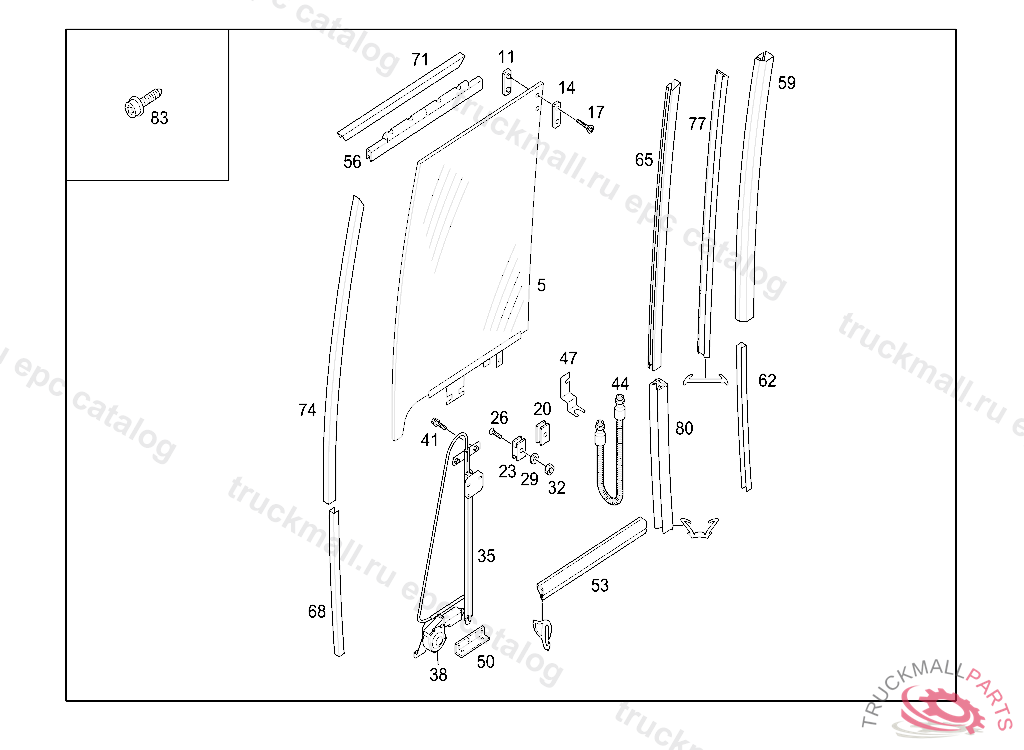

O580 TRAVEGO 15RH - 629.001 - 67 WINDOWS
Поз.
Артикул
Описание
5
GLASS PANE
11
SLIDE
14
SEAL
17
SCREW
20
SLIDE
23
SLIDE
26
SCREWM6X20
29
WASHER SWITCH TO FIRE WALL
32
NUT BRACKET TO FIRE WALL
35
WINDOW REGULATOR
38
ELECTRIC MOTOR WITH TRANSMISSION TO A 628 820 00 42
41
HEXAGON HEAD BOLT
44
HOSE
47
BRACKET
50
ANGLE
53
RUBBER SECTION848LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
56
SEAL
59
COVERING
62
WINDOW GUIDE
65
WINDOW GUIDE
68
WINDOW GUIDE
71
WINDOW GUIDE
74
GUIDE RAIL
77
SEAL742 LG.
77
SEAL1390 LG.
80
WINDOW RUN742 LG.
80
WINDOW RUN1390 LG.
83
TAPPING SCREW3,5X13
