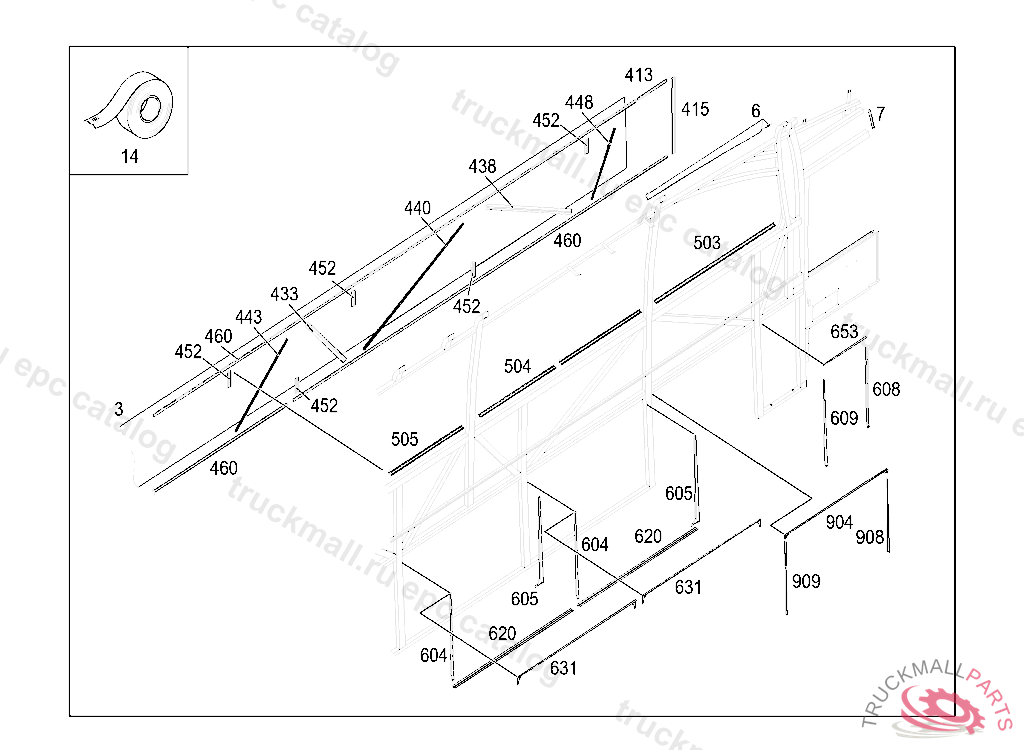

O580 TRAVEGO 15RH - 629.001 - 63 SIDE PANELS
Поз.
Артикул
Описание
3
PANELLING10481X700
6
COVERING TOP 1558MM
7
ANGLE210LG
14
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
ADHESIVE TAPE
413
PAD359LG
415
PAD10X30X715MM
433
BRACKET763LG
438
BRACKET1209MM
440
BRACKET1376MM
443
BRACKET864MM
448
BRACKET615MM
452
BRACKET150LG
460
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
503
ANGLE1555MM
504
ANGLE2135LG
505
ANGLE1775LG
604
ANGLE LATERAL 836LG
605
ANGLE LATERAL 836LG
608
ANGLE LATERAL 823LG
609
ANGLE LATERAL 823LG
620
ANGLE BOTTOM 1474LG
631
ANGLE TOP 1474LG
653
ANGLE TOP
904
ANGLE WHEEL ARCH 1304LG
908
ANGLE LATERAL
909
ANGLE
999
RIVET4,8X11,5MM
