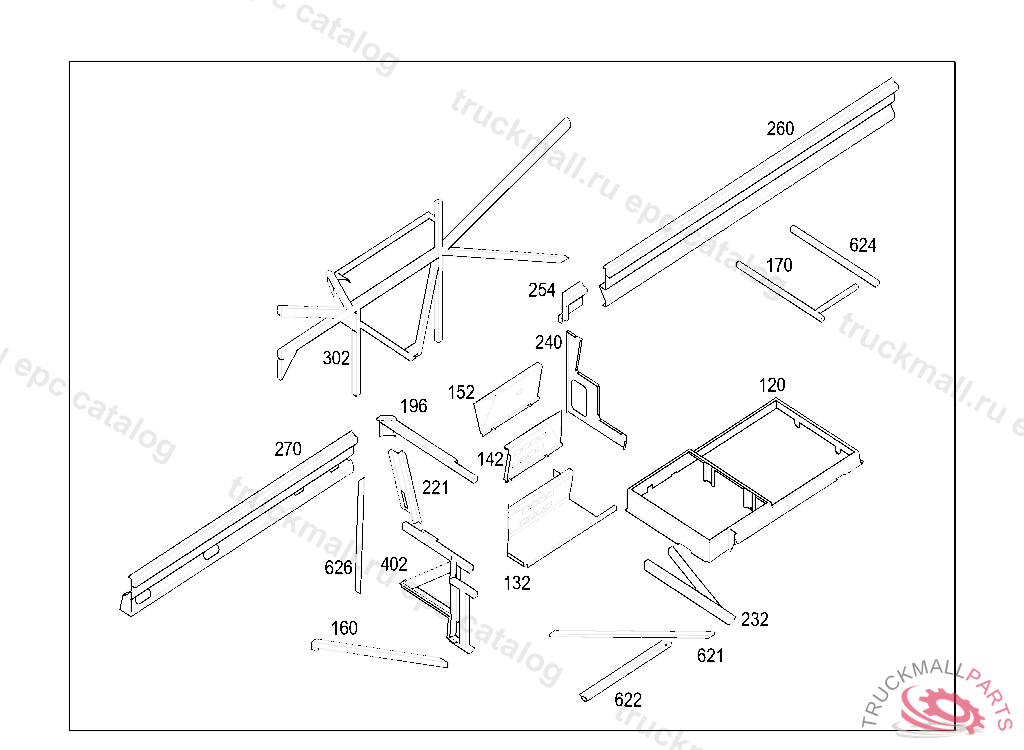

O580 TRAVEGO 15RHD - 629.011 - 66 INSTALLATIONS
Поз.
Артикул
Описание
120
FRAME PART
120
FRAME PART
120
FRAME PART
132
STEP
142
STEP
152
STEP TOP 638LG
160
SUPPORT BOTTOM
160
SUPPORT
170
SUPPORT
170
SUPPORT RIGHT
196
FRAME PART935LG
221
SUPPORT655LG
232
FRAME PART BOTTOM 873LG
240
SIDE PANEL FRONT 621X583MM
240
SIDE PANEL FRONT 621X583MM
240
SIDE PANEL
240
SIDE PANEL FRONT 621X583MM
254
FRAME PART TOP
254
FRAME PART TOP
260
SIDE MEMBER
260
SIDE MEMBER
270
SIDE MEMBER REAR RIGHT 2210LG
270
SIDE MEMBER REAR RIGHT 2210LG
270
SIDE MEMBER REAR RIGHT 2427LG
302
SIDE MEMBER. SUPPORT
302
SIDE MEMBER. SUPPORT
402
SUPPORT
621
STRUT BOTTOM L1160MM
622
SUPPORT BOTTOM 941LG
622
SUPPORT BOTTOM 852LG
624
SUPPORT
626
STRUT
999
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
