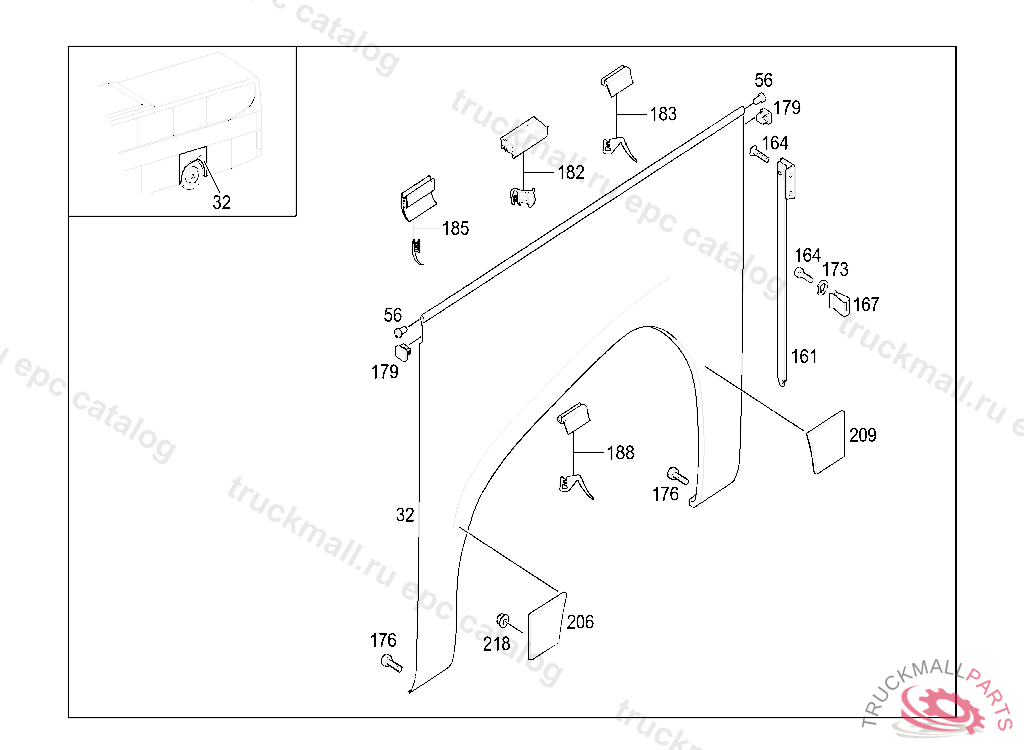

O580 TRAVEGO 15RHD - 629.011 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
32
FLAP
32
FLAP
56
BUSHING
161
STAY
164
SCREWM6X12 TX30
167
SPRING
173
SPRING WASHER CABLE TO ALTERNATOR
176
SCREW PIPE ELBOW TO BRACKET M8X12
176
SCREW BRACKET TO CAB REAR PANEL M 8X20
179
LOCKING CAP
182
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
183
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
SEALING SECTION
188
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
206
ORNAMENTAL COVER
206
FOIL
209
FOIL
209
ORNAMENTAL COVER
218
NUT MOUNTING FRAME TO SUPPORT M6
