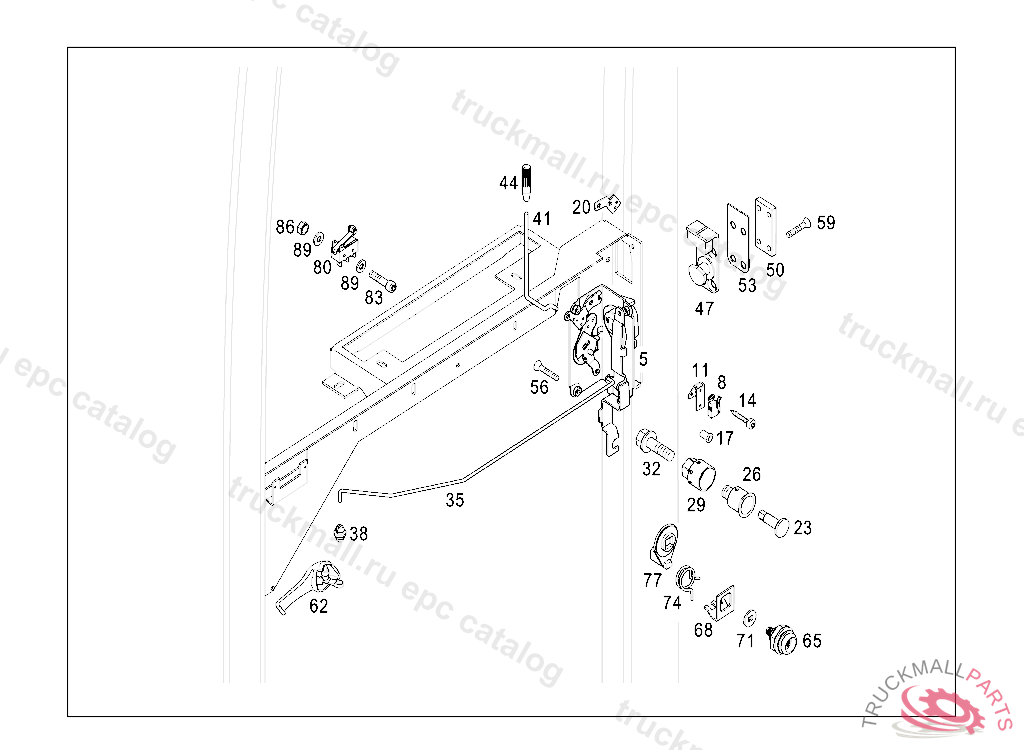

Поз.
Артикул
Описание
5
DOOR LOCK WITH MICROSWITCH
5
DOOR LOCK COMPLETE
8
SWITCH MICRO-SWITCH
11
BRACKET MICRO-SWITCH
14
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
17
RIVET3X6MM
20
BRACKET CENTRAL LOCKING MECHANISM
23
KNOB OUTSIDE
26
ESCUTCHEON OUTSIDE
29
SLEEVE
32
SCREW BRACKET TO CAB REAR PANEL M 8X20
35
PULL ROD
38
CLIP
38
CLIP , Replaced By: A0039885078
41
PULL ROD
41
OPERATING ROD
44
KNOB INSIDE
47
STRIKER
50
PLATE STRIKER
53
COMPENSATING PLATE STRIKER
56
ECCENTRIC SCREW ROLLER BLIND TO BODY M6X16 T30
59
SCREWM8X16
62
DOOR PULL HANDLE WITH SHELL-TYPE HANDLE
65
LOCK HOUSING
68
STOP SPRING REBOUND
71
LIMITATION RESET SPRING
74
SPRING RESET
77
CAM LOCK ACTUATION
80
SWITCH MICRO-SWITCH
83
SCREWM3X30
86
NUT PLUG SOCKET TO BRACKET,5 906887
89
WASHER BRACKET TO APPARATUS PLATE
999
ORNAMENTAL COVER MICRO-SWITCH
