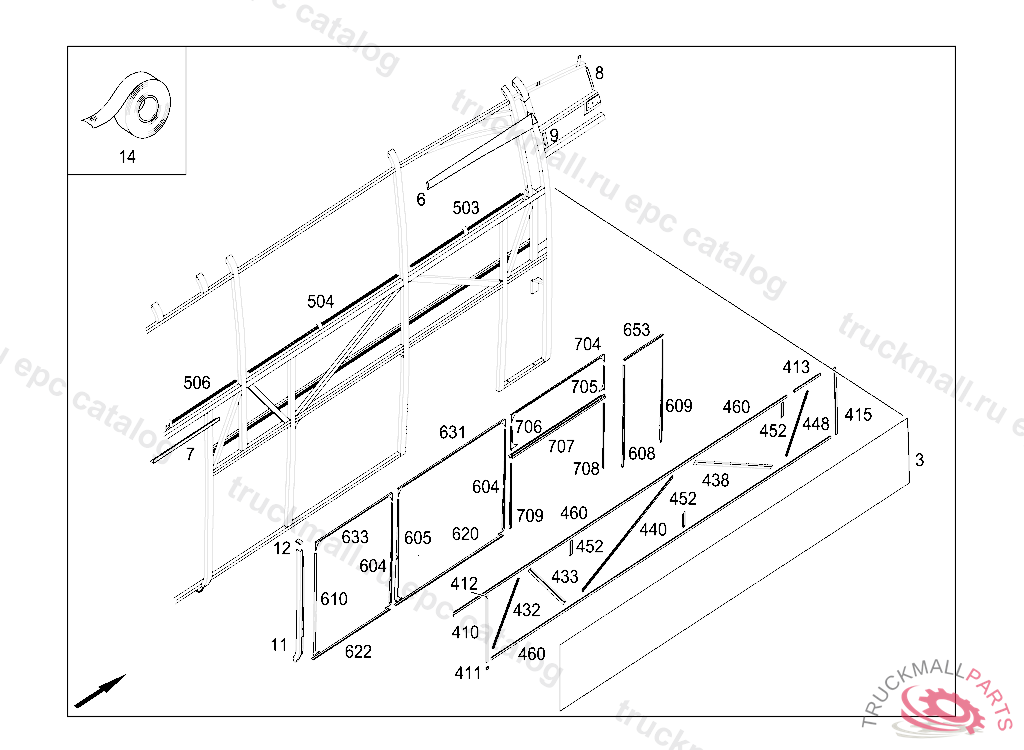

O580 TRAVEGO 15RHD - 629.011 - 63 SIDE PANELS
Поз.
Артикул
Описание
3
PANELLING FRONT 4780X700MM
3
PANELLING FRONT
6
COVERING TOP 1558LG
7
ANGLE CENTRAL 901LG
8
ANGLE180MM
9
ANGLE97LG
11
PANELLING DOOR CENTRAL PILLAR
12
PAD20X8X28MM
14
ADHESIVE TAPE
14
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
410
PAD DOOR CENTRAL PILLAR 10X20X660MM
411
PAD DOOR CENTRAL PILLAR 10X28X20MM
412
PAD CENTRAL 2X20X40MM
413
PAD359LG
415
PAD10X30X715MM
432
BRACKET802LG
432
BRACKET663LG
433
BRACKET763LG
438
BRACKET1209MM
440
BRACKET1376MM
448
BRACKET615MM
452
BRACKET150LG
460
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
503
ANGLE1555LG
504
ANGLE2135LG
506
ANGLE2135LG
506
ANGLE2135LG
604
ANGLE1090MM
605
ANGLE1090LG
608
ANGLE1090LG
609
ANGLE
610
ANGLE LATERAL 1090MM
620
ANGLE BOTTOM 1474LG
622
ANGLE BOTTOM 1054LG
622
ANGLE BOTTOM 1234MM
631
ANGLE TOP 1474LG
633
ANGLE TOP 1054MM
633
ANGLE1234LG
653
ANGLE TOP
704
ANGLE1074LG
704
ANGLE TOP
705
ANGLE LATERAL
705
ANGLE255 MM
706
ANGLE255LG
706
ANGLE LATERAL
707
BRACKET1276 MM
708
ANGLE
708
ANGLE LATERAL 690MM
709
ANGLE LATERAL
709
ANGLE LATERAL
999
RIVET4,8X11,5MM
