Поз.
Артикул
Описание
5

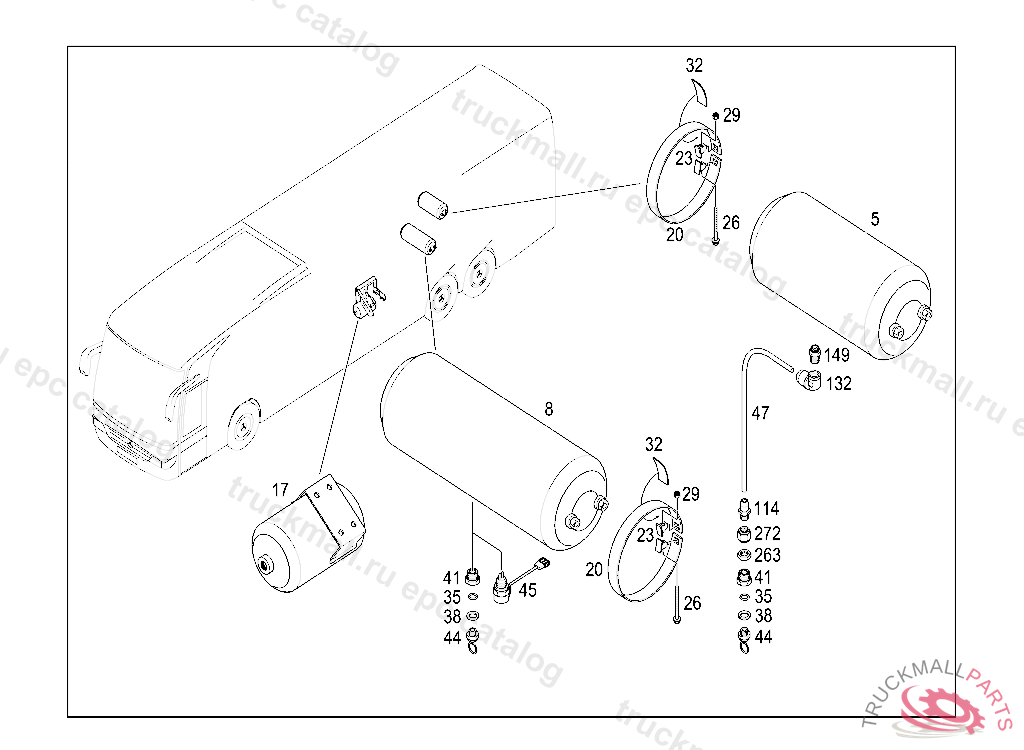

COMPRESSED AIR RESERVOIR REAR AXLE BRAKE CIRCUIT AND SECONDARY CONSUMING UNITS
5
RESERVOIR AIR RESERVOIR 20L
5
RESERVOIR AIR RESERVOIR 20L, Replaced By: A0064326401
5
RESERVOIR , Replaced By: A0044328001
8
RESERVOIR AIR RESERVOIR 40L
8
RESERVOIR (AIR RESERVOIR),STEEL VERSION 40L/DAE74281, Replaced By: A0064326801
8
RESERVOIR , Replaced By: A0044328301
8
COMPRESSED AIR RESERVOIR40 L
17
COMPRESSED AIR RESERVOIR REGENERATION TANK 4L
17
RESERVOIR
17
RESERVOIR REGENERATION TANK 4L, Replaced By: A0064327301
20
STRAP875LG
20
STRAP780LG
23
SHACKLE
26
HEXAGON HEAD BOLTM8X90
29
NUT HORN TO BRACKET M8
32
ADHESIVE TAPE PAD FOR STRAP 50 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
32
BASE FOR FRANCE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
32
ADHESIVE TAPE PAD FOR STRAP 50 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0079893385
35
SEAL RING20.3X2.4
38
THRUST RING CHECK VALVE TO AIR RESERVOIR
41
FITTINGM22X1,5
44
VALVE DRAIN VALVE
45
SENSOR CONDENSED WATER
47
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
114
FITTING12X1.5/M22X1.5 RAUFOSS
132
ELBOW FITTINGP5/12X1.5/90GR
149
FITTINGP5/M22X1.5 RAUFOSS
263
NUT WITH O-RING M22X1.5 RAUFOSS
272
SLEEVEM22X1.5 RAUFOSS
