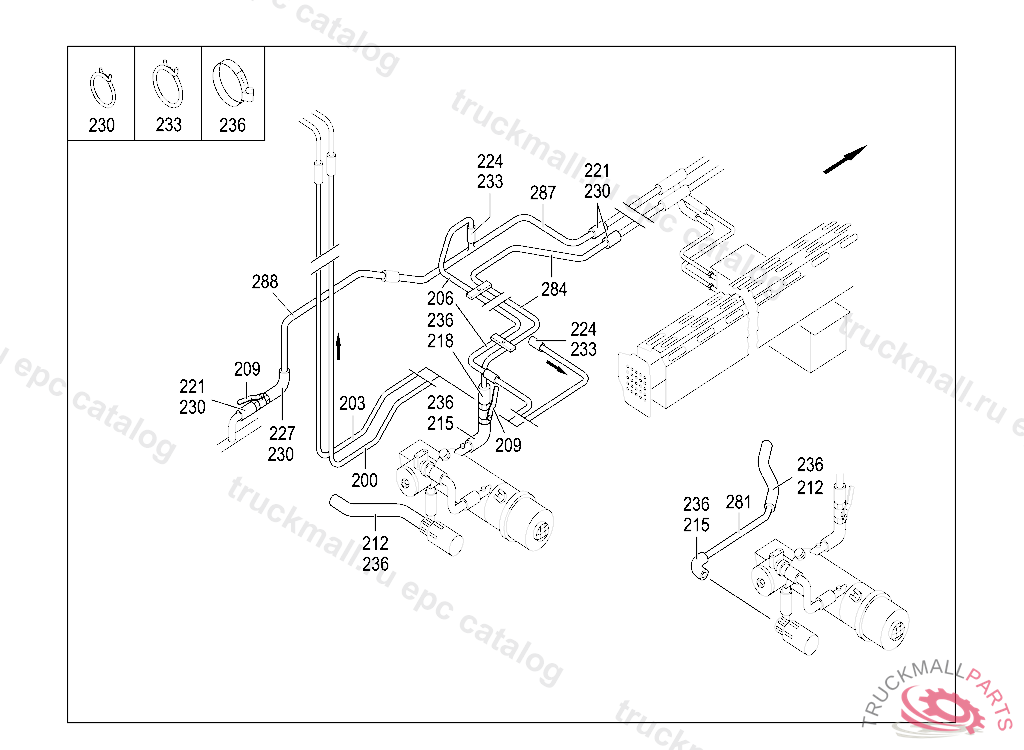

O580 TRAVEGO 17RHD - 629.012 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
200
PIPE LINE1700LG
203
PIPE LINE1200LG
206
PIPE LINE1850LG
209
SLIDE
209
SLIDED38, Replaced By: A0008300057
212
RADIATOR HOSE550MM, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 14.01.2002
212
HOSE PIPE LINE TO PIPE LINE
215
PIPE BEND38X50MM/90GR
218
HOSE38X50X100MM
221
HOSE LINE CONNECTION 38X50X100 MM
221
HOSE ,D 209702
224
HOSE
224
HOSE22X31X100MM
227
PIPE BEND
227
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
230
CLAMP48-51MM
233
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
233
CLAMP29.5-31 MM
236
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
281
PIPE LINE650LG
281
PIPE LINE750LG
284
PIPE LINE FEED
287
PIPE LINE RETURN
287
PIPE LINE RETURN
288
PIPE LINE RETURN 1000 LG
