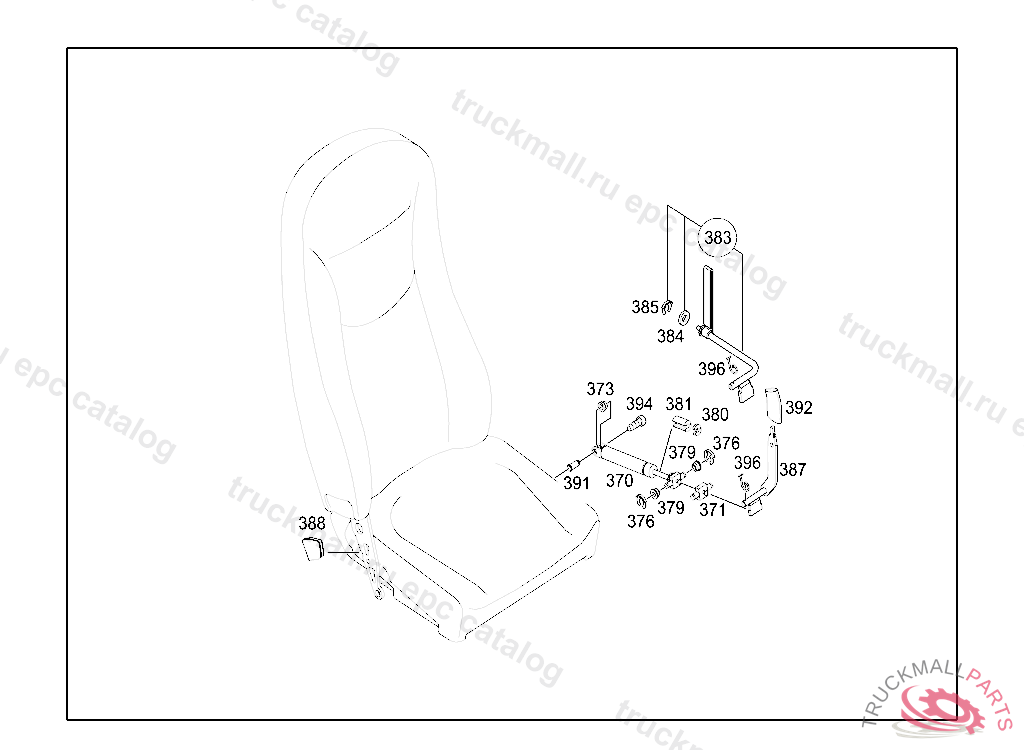

O580 TRAVEGO 17RHD - 629.012 - 92 SEATS
Поз.
Артикул
Описание
370
STAY DIA., 21MM
371
SUPPORT
373
BUSHING REAR
376
WASHER
379
BUSHING FRONT
380
WASHER5MM
381
STOP LENGTH: 32,5 MM
381
STOP LENGTH: 13,6 MM
381
STOP LENGTH: 5 MM
381
STOP LENGTH: 22,5 MM
383
LEVER REAR,SPACE FOR HANDICAPPED PERSON,LEFT
383
LEVER REAR,SPACE FOR HANDICAPPED PERSON,RIGHT
384
WASHER EXHAUST MUFFLER TO STRAP
385
WASHER
387
LEVER RIGHT,IN THE REAR
387
LEVER LEFT,IN THE REAR
388
STOP BUFFER BACKREST
391
SUPPORT AT REAR ON GAS-OPERATED SPRING
392
CAP
394
SCREW
396
SPRING LEFT
396
SPRING RIGHT
