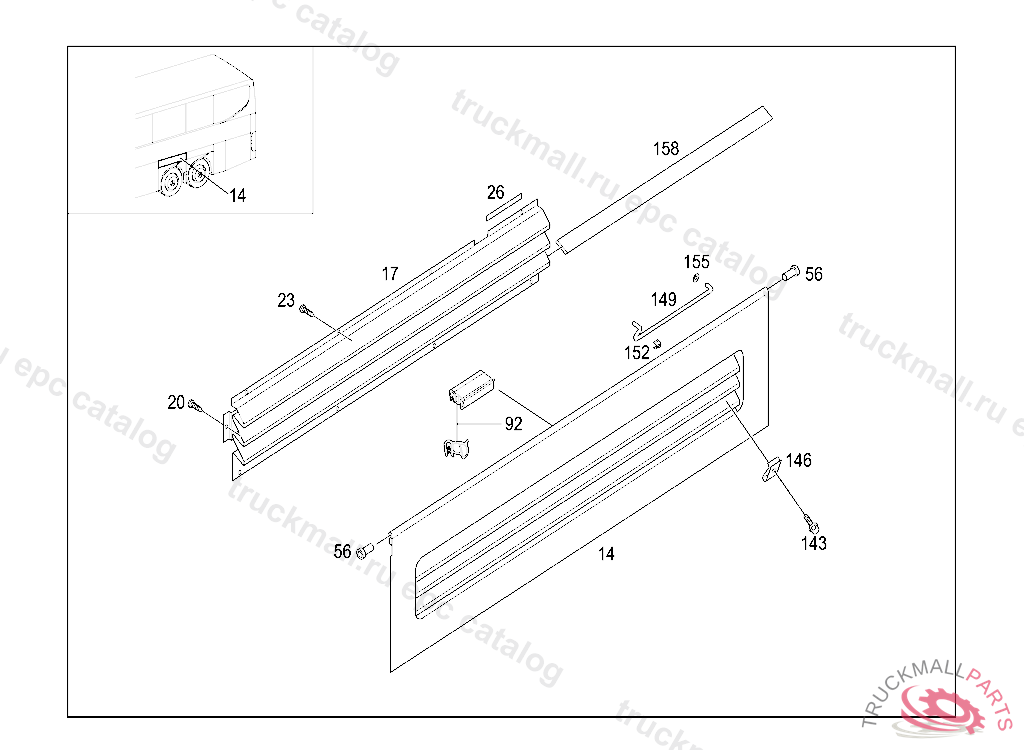

O580 TRAVEGO 17RHD - 629.012 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
14
FLAP
14
FLAP
17
VENTILATION PART
20
HEXALOBULAR BOLTM5X12
23
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
26
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
56
BUSHING
92
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
143
HEXALOBULAR BOLTM8X16
146
NUTM8
149
SUPPORT
152
BRACKET
155
SPRING NUT , Replaced By: A0009943510
155
LOCK
158
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
