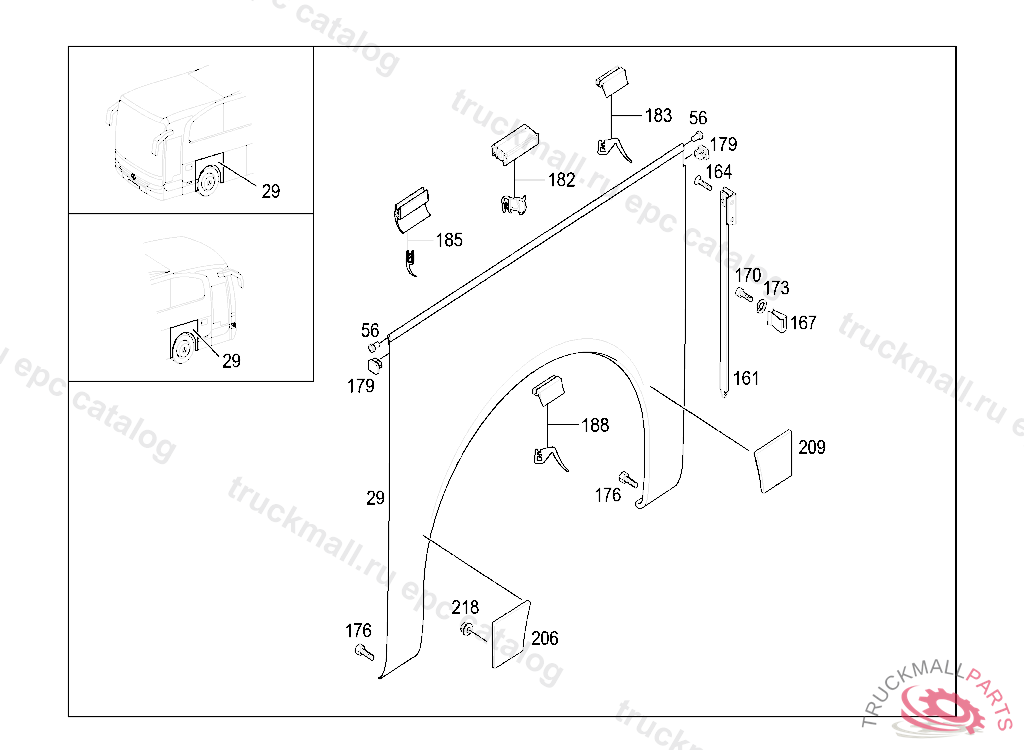

O580 TRAVEGO 17RHD - 629.012 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
29
FLAP LEFT
29
FLAP
29
FLAP RIGHT
56
BUSHING
161
STAY
164
SCREWM6X12 TX30
167
SPRING
170
SCREWM 6 X 12
173
SPRING WASHER CABLE TO ALTERNATOR
176
SCREW PIPE ELBOW TO BRACKET M8X12
176
SCREW BRACKET TO CAB REAR PANEL M 8X20
179
LOCKING CAP
182
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
183
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
SEALING SECTION
188
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
206
FOIL
206
ORNAMENTAL COVER
209
ORNAMENTAL COVER
209
FOIL
218
NUT MOUNTING FRAME TO SUPPORT M6
