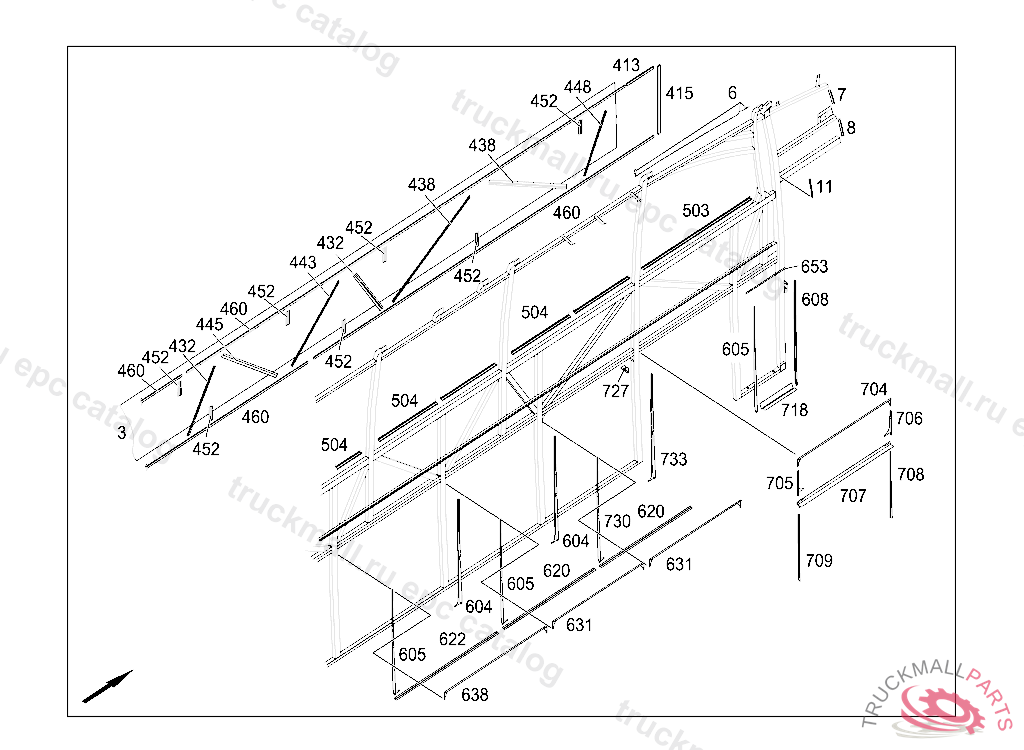

O580 TRAVEGO 17RHD - 629.012 - 63 SIDE PANELS
Поз.
Артикул
Описание
3
PANELLING12331X700MM
6
COVERING TOP 1558MM
7
ANGLE180MM
7
ANGLE190MM, Replaced By: A6296020812
8
ANGLE210LG
11
ANGLE215MM
413
PAD359LG
415
PAD B-PILLAR 20X10X715MM
415
PAD10X30X715MM
432
BRACKET663LG
438
BRACKET1209MM
443
BRACKET864MM
445
BRACKET954LG
448
BRACKET615MM
452
BRACKET150LG
460
RAIL
460
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
503
ANGLE1555MM
504
ANGLE1740MM
604
ANGLE1090LG
605
ANGLE1090MM
608
ANGLE LATERAL 1090MM
608
ANGLE LATERAL 1090MM, Replaced By: A6296370712
620
ANGLE TOP 1049MM, Replaced By: A6296373093
620
ANGLE BOTTOM 1249 MM
622
ANGLE BOTTOM 1404MM
631
ANGLE TOP 1249MM
631
ANGLE
638
ANGLE TOP 1404MM
653
ANGLE TOP 534MM
653
ANGLE TOP
704
ANGLE TOP
705
ANGLE LATERAL
705
ANGLE255 MM
706
ANGLE255LG
706
ANGLE LATERAL
707
BRACKET1276 MM
708
ANGLE
708
ANGLE LATERAL 690MM
709
ANGLE LATERAL
709
ANGLE LATERAL
718
ANGLE BOTTOM
727
REINFORCEMENT
730
ANGLE RIGHT
733
ANGLE LEFT
999
RIVET4,8X11,5MM
999
ADHESIVE TAPE
999
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
