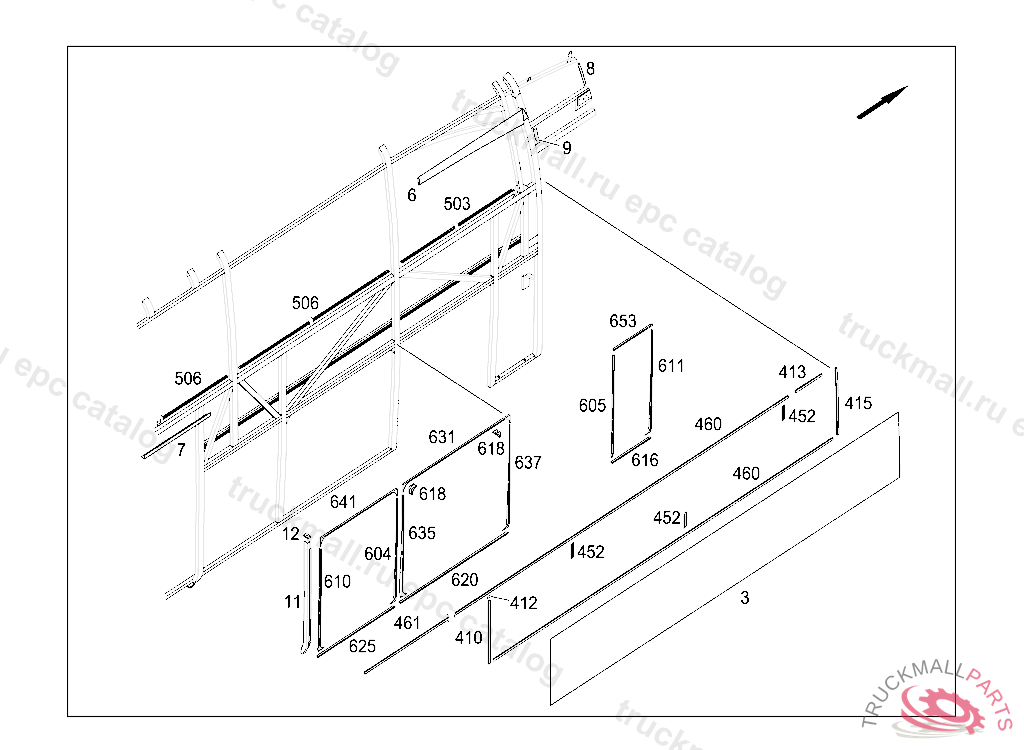

O580 TRAVEGO 17RHD - 629.012 - 63 SIDE PANELS
Поз.
Артикул
Описание
3
PANELLING FRONT 5790X700MM
3
PANELLING FRONT 5790X700MM
6
COVERING TOP 1558LG
7
ANGLE CENTRAL 901LG
8
ANGLE180MM
9
ANGLE97LG
11
PANELLING DOOR CENTRAL PILLAR
12
PAD20X8X28MM
410
PAD DOOR CENTRAL PILLAR 10X20X660MM
412
PAD CENTRAL 2X20X40MM
413
PAD359LG
415
PAD10X30X715MM
415
PAD B-PILLAR 20X10X715MM
452
BRACKET150LG
460
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
460
RAIL
461
PAD2385MM
503
ANGLE1555MM
506
ANGLE1740MM
604
ANGLE1090MM
605
ANGLE1090LG
610
ANGLE LATERAL 1090MM
611
ANGLE LATERAL 1090MM
616
ANGLE BOTTOM
618
REINFORCEMENT
620
ANGLE TOP 1049MM, Replaced By: A6296373093
620
ANGLE BOTTOM 1249 MM
625
ANGLE BOTTOM 984 MM
625
ANGLE BOTTOM 1164 MM
631
ANGLE TOP 1249MM
635
ANGLE LEFT
637
ANGLE RIGHT
653
ANGLE TOP 534MM
653
ANGLE TOP
999
RIVET4,8X11,5MM
999
ADHESIVE TAPE
999
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
