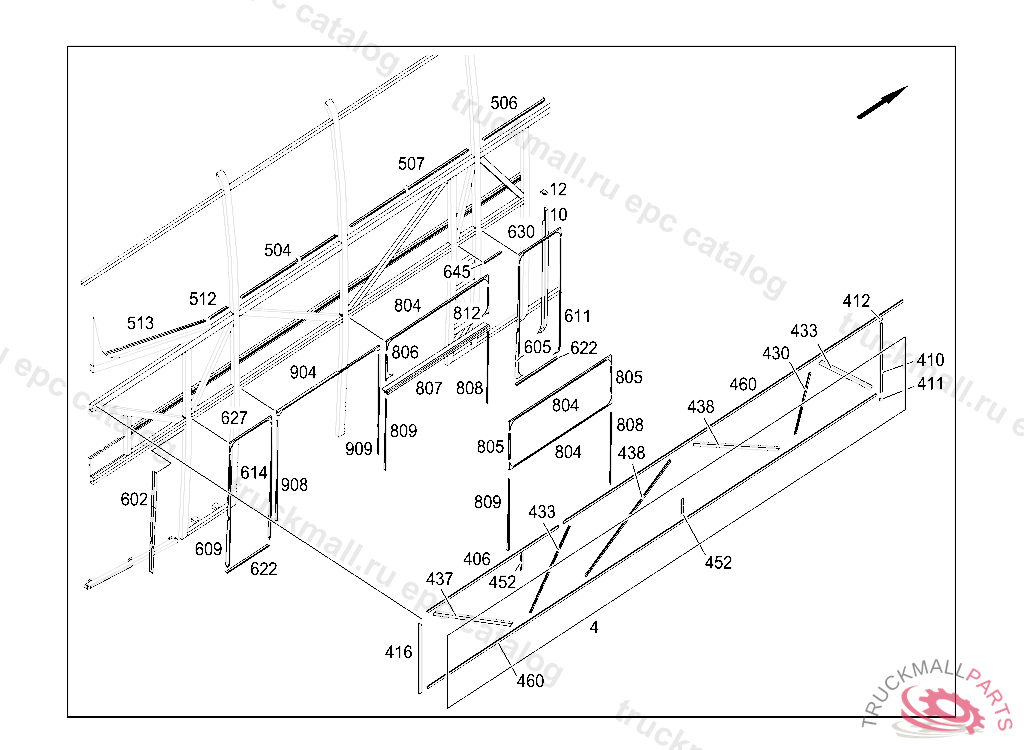

O580 TRAVEGO 17RHD - 629.012 - 63 SIDE PANELS
Поз.
Артикул
Описание
4
PANELLING REAR 5511X700MM
4
PANELLING REAR 5691MM
10
PANELLING DOOR CENTRAL PILLAR 1198MM
12
PAD20X8X28MM
406
PAD REAR
410
PAD DOOR CENTRAL PILLAR 10X20X660MM
411
PAD DOOR CENTRAL PILLAR 10X28X20MM
412
PAD CENTRAL 2X20X40MM
416
PAD C-PILLAR 674MM
430
BRACKET533LG
433
BRACKET763LG
437
BRACKET1133MM
438
BRACKET1209MM
452
BRACKET150LG
460
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
460
RAIL
504
ANGLE1270MM
506
ANGLE1740MM
507
ANGLE1570MM
512
ANGLE220MM
513
ANGLE1410LG
602
ANGLE1000LG
605
ANGLE1090LG
609
ANGLE
611
ANGLE LATERAL 1090MM
614
ANGLE1090MM
622
ANGLE704LG
622
ANGLE BOTTOM 524LG
627
ANGLE TOP 520MM
630
ANGLE TOP 524MM
630
ANGLE704LG
645
ANGLE TOP 180LG
645
ANGLE TOP 220LG
804
ANGLE TOP
805
ANGLE
806
ANGLE255LG
807
BRACKET1278LG
808
ANGLE
808
ANGLE LATERAL 690MM
809
ANGLE LATERAL
809
ANGLE LATERAL
812
ANGLE255 MM
904
ANGLE WITH BATTERY 1278MM
904
ANGLE1268MM
908
ANGLE963MM
909
ANGLE LATERAL
999
RIVET4,8X11,5MM
999
ADHESIVE TAPE
999
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
