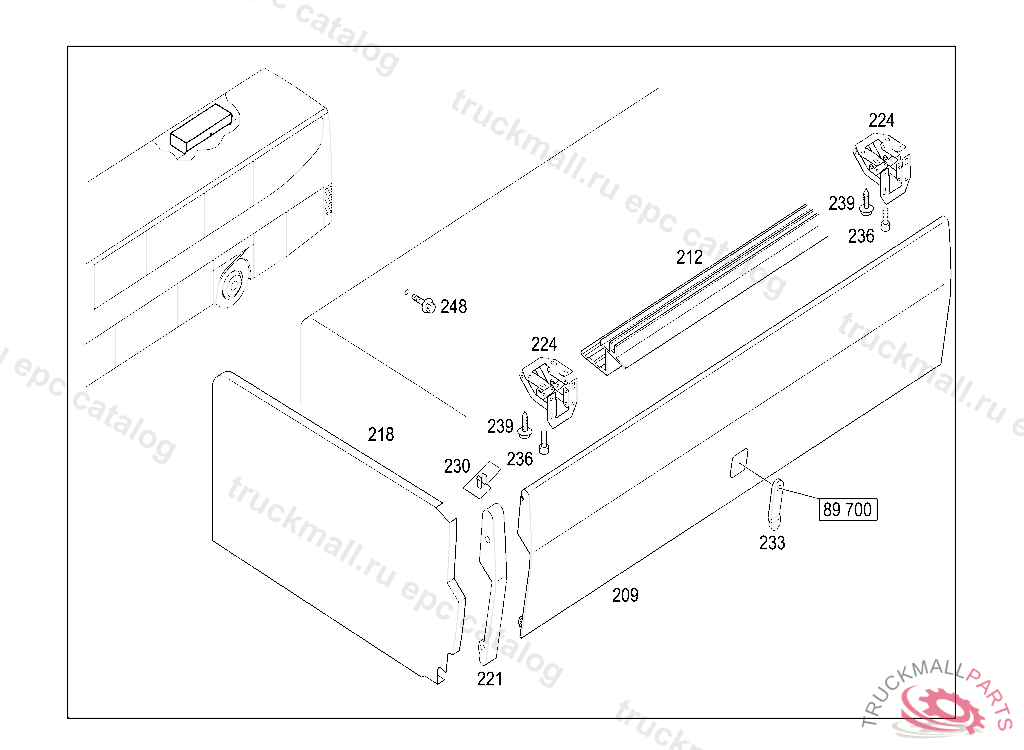

O580 TRAVEGO 17RHD - 629.012 - 81 APPOINTMENTS

Поз.
Артикул
Описание
209
A6296950664
FLAP
212
A6296951635
RAIL
218
A6296950055
PARTITION PANEL LEFT
218
A6296950155
PARTITION PANEL RIGHT
221
A6296950730
COVERING LEFT
221
A6296950830
COVERING RIGHT
224
A0006950051
HINGE
230
A6296951030
COVERING RIGHT
230
A6296950930
COVERING LEFT
233
A6296950143
LATCH
236
A0039907712
SCREWM4X10
239
N000000000879
TAPPING SCREW2,9X13
248
N000000000516
TAPPING SCREW3.5X16
999
A0006950175
COVER , AS OF PRODUCTION BREAKPOINT DATE 16.02.04
999
A6296950075
COVER , UNTIL PRODUCTION BREAKPOINT DATE 13.02.04 DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
999
N000933006148
SCREW BRACKET TO CONSOLE
999
N007349006001
WASHER COMPRESSED AIR MANIFOLD TO THERMOSTAT HOUSING SUPPORT
