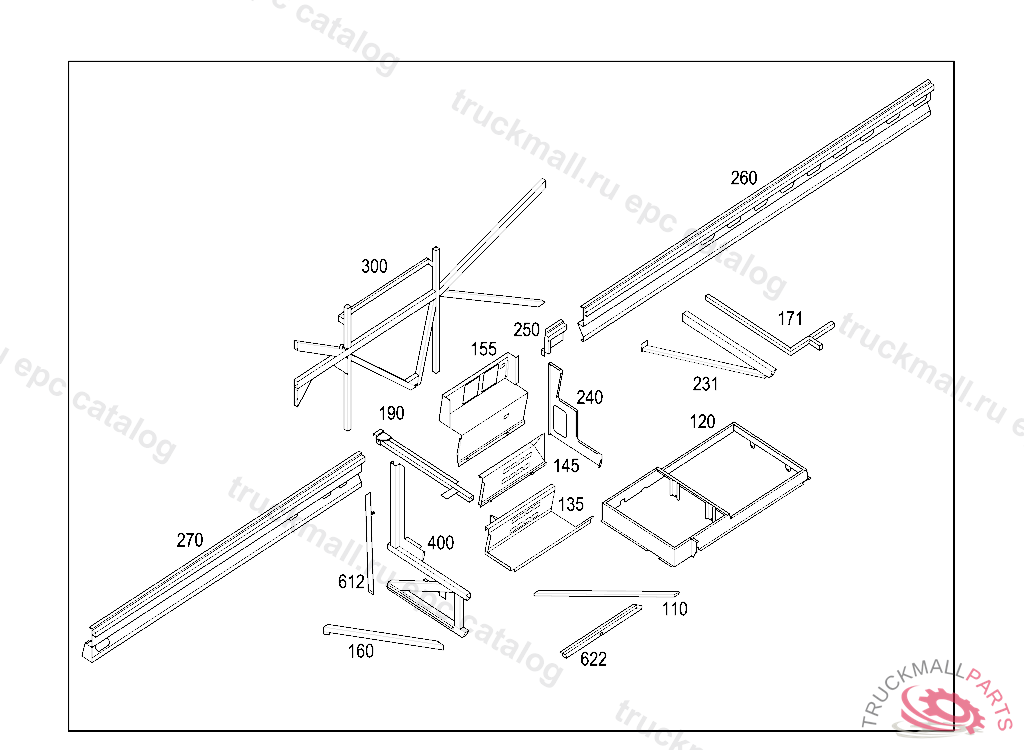

O580 TRAVEGO 16RHD - 629.015 - 66 INSTALLATIONS
Поз.
Артикул
Описание
110
FRAME PART BOTTOM
120
FRAME PART
120
FRAME
160
SUPPORT BOTTOM
190
FRAME PART935LG
190
FRAME PART963LG
190
PEDESTAL
190
PEDESTAL
190
PEDESTAL
190
PEDESTAL
231
SUPPORT
240
SIDE PANEL
250
SUPPORT
250
FRAME PART TOP
260
SIDE MEMBER
260
SIDE MEMBER
270
SIDE MEMBER REAR RIGHT 3247MM
300
SIDE MEMBER. SUPPORT
300
SIDE MEMBER. SUPPORT
300
SIDE MEMBER. SUPPORT
400
FRAME PART
400
SUPPORT
612
SUPPORT
622
SUPPORT BOTTOM 941LG
622
SUPPORT BOTTOM 852LG
999
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
