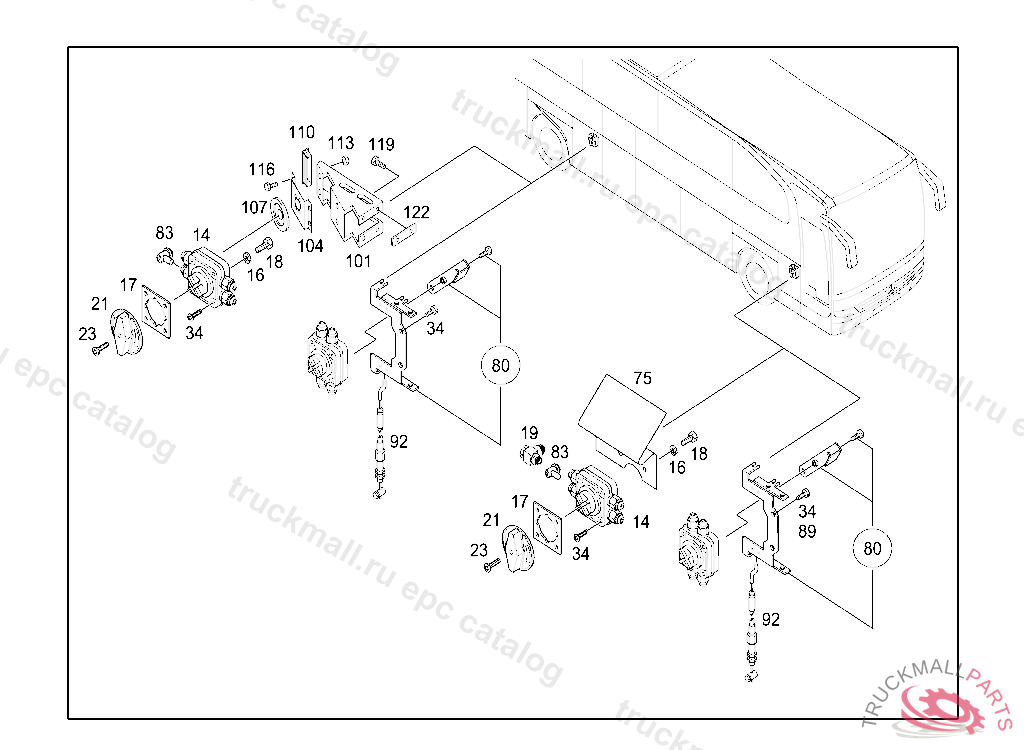

O580 TRAVEGO 16RHD - 629.015 - 76 DOOR AND WINDOW ACCESSORIES
Поз.
Артикул
Описание
14
CONTROL COCK
14
VALVE
16
LOCK
17
RUBBER PAD
18
SCREW
19
SLEEVE
21
ROTARY KNOB
34
HEXAL. SOCKET CSK. BOLTM6X10 TX30
80
CONTROL COCK
83
ELBOW FITTING
89
SCREWM 6X12
92
PULLL1400 MM
92
PULL
101
BRACKET , EXHAUST STOCK OF OLD PART NUMBER FIRST
101
BRACKET
101
BRACKET , Replaced By: A6327630414
104
PLATE
107
SEAL
107
SEAL , Replaced By: A6327570078
110
PLUG
113
NUT BRACKET TO FIRE WALL
116
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
116
SCREW , Replaced By: N914146006102
119
HEXAGON HEAD BOLT
122
PAD
