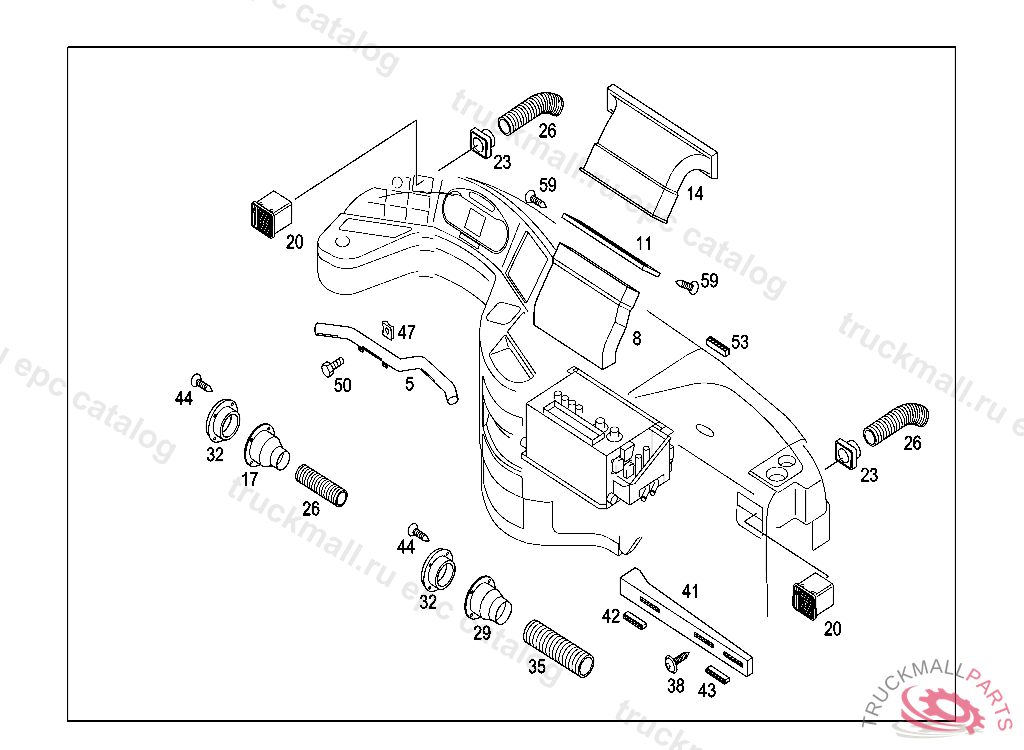

O580 TRAVEGO 16RHD - 629.015 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
5
NOZZLE FOR DRIVER
8
DUCT FOR CO-DRIVER
11
REINFORCEMENT
14
DUCT
17
NOZZLE37MM
20
NOZZLE DRIVER'S PLACE
23
CONNECTOR
26
HOSE37MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
NOZZLE50MM
32
NOZZLE
35
HOSE50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
38
TAPPING SCREW RAIL
41
NOZZLE FOR CO-DRIVER
42
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
43
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
44
TAPPING SCREW3,5X13
44
COUNTERSUNK WOOD SCREW4,1X16MM
47
CLIP FASTENERM5
50
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
59
TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
