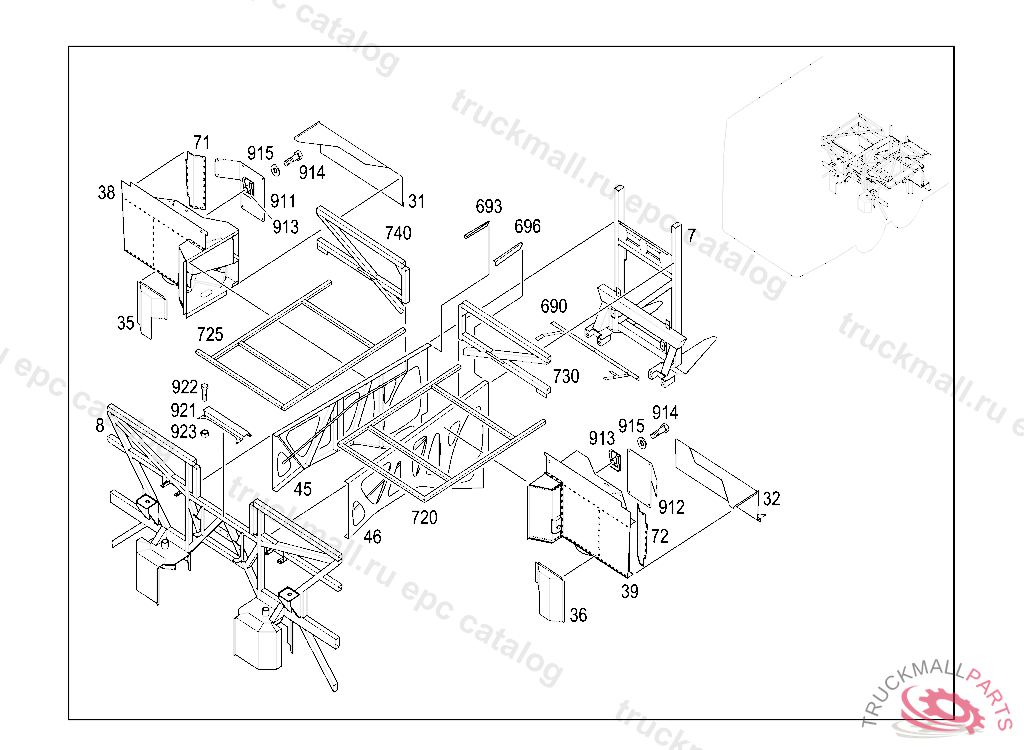

O580 TRAVEGO 16RHD - 629.015 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
7
CROSS MEMBER CENTRAL 7
7
CROSS MEMBER CENTRAL 7
8
CROSS MEMBER8
31
WEB LEFT 875MM
31
WEB LEFT 875LG
32
WEB RIGHT 875LG
35
WEB LEFT
36
WEB RIGHT
38
CROSS MEMBER OUTSIDE LEFT 7
39
CROSS MEMBER OUTSIDE RIGHT 7
45
FRAME GIRDER LEFT SIDE MEMBER
46
FRAME GIRDER RIGHT SIDE MEMBER
71
WEB LEFT 427X170MM
72
WEB RIGHT 427X170MM
690
BRACKET HEATER UNIT
693
WEB LEFT
696
WEB RIGHT
720
FLOOR CARRIER
725
FLOOR CARRIER BOTTOM LEFT
730
CONNECTION RIGHT TOP 7
730
CONNECTION RIGHT TOP 7
740
CONNECTION LEFT TOP 7
740
CONNECTION LEFT TOP 7
911
COVER LEFT 447X364MM
912
COVER RIGHT 447X364MM
913
LOCK. NUT , Replaced By: A0039941745
914
SCREW. HEXAGON HEAD BOLTM6X20MM
915
WASHER FRAME MOUNTING
921
REST430MM
922
SCREW , Replaced By: N910143008000
923
NUT HORN TO BRACKET M8
