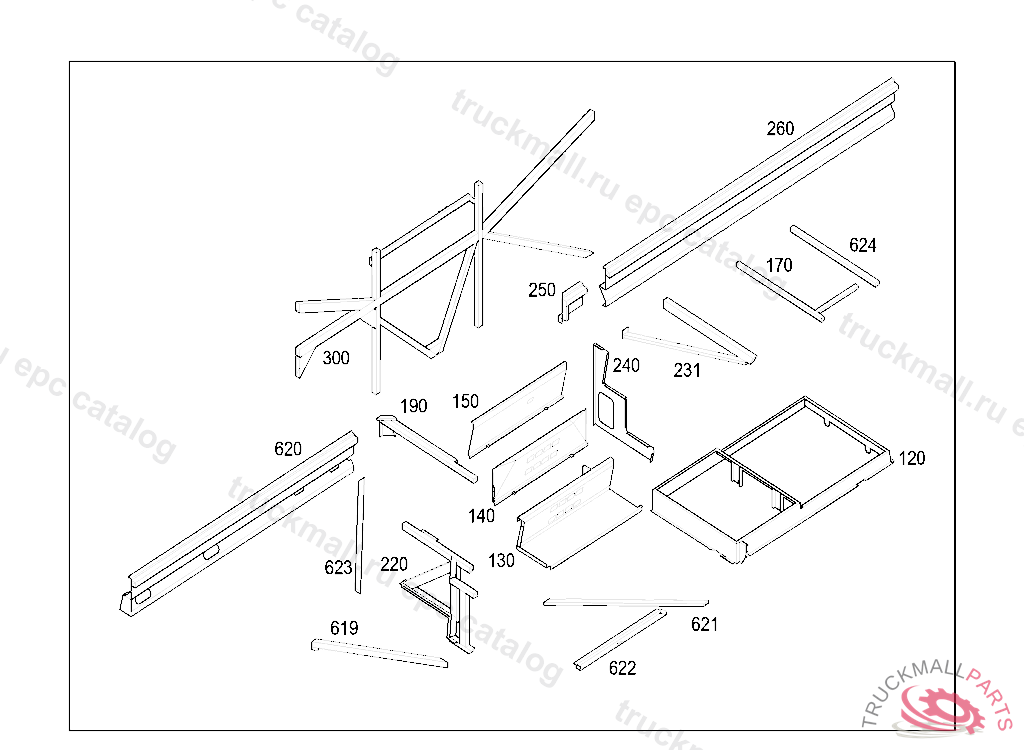

O580 TRAVEGO 16RHD - 629.015 - 66 INSTALLATIONS

Поз.
Артикул
Описание
120
A6296600378
FRAME PART
120
A6296608022
FRAME
130
A6296600528
STEP
130
A6296608428
STEP
130
A6296602829
ROCKER PANEL
140
A6296600628
STEP
140
A6296608528
STEP
140
A6296602929
ROCKER PANEL
150
A6296608628
STEP
150
A6296603029
ROCKER PANEL
150
A6296606128
ROCKER PANEL TOP
170
A6296600043
SUPPORT
190
A6296602422
FRAME PART963LG
190
A6296600868
PEDESTAL
190
A6296600368
PEDESTAL
190
A6296600268
PEDESTAL
190
A6296600822
FRAME PART935LG
190
A6296600068
PEDESTAL
220
A6296602522
FRAME PART
231
A6296660210
SUPPORT
240
A6296600636
SIDE PANEL
250
A6296601243
SUPPORT
250
A6296601023
FRAME PART TOP
260
A6296100515
SIDE MEMBER
260
A6296100315
SIDE MEMBER
300
A6296601330
SIDE MEMBER. SUPPORT
300
A6296600130
SIDE MEMBER. SUPPORT
300
A6296600030
SIDE MEMBER. SUPPORT
619
A6296601030
SUPPORT
620
A6296101315
SIDE MEMBER
621
A6296662532
STRUT BOTTOM L1160MM
622
A6296662010
SUPPORT BOTTOM 852LG
622
A6296661910
SUPPORT BOTTOM 941LG
623
A6296602830
STRUT. SUPPORT
623
A6296664732
STRUT
624
A6296664010
SUPPORT
999
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
