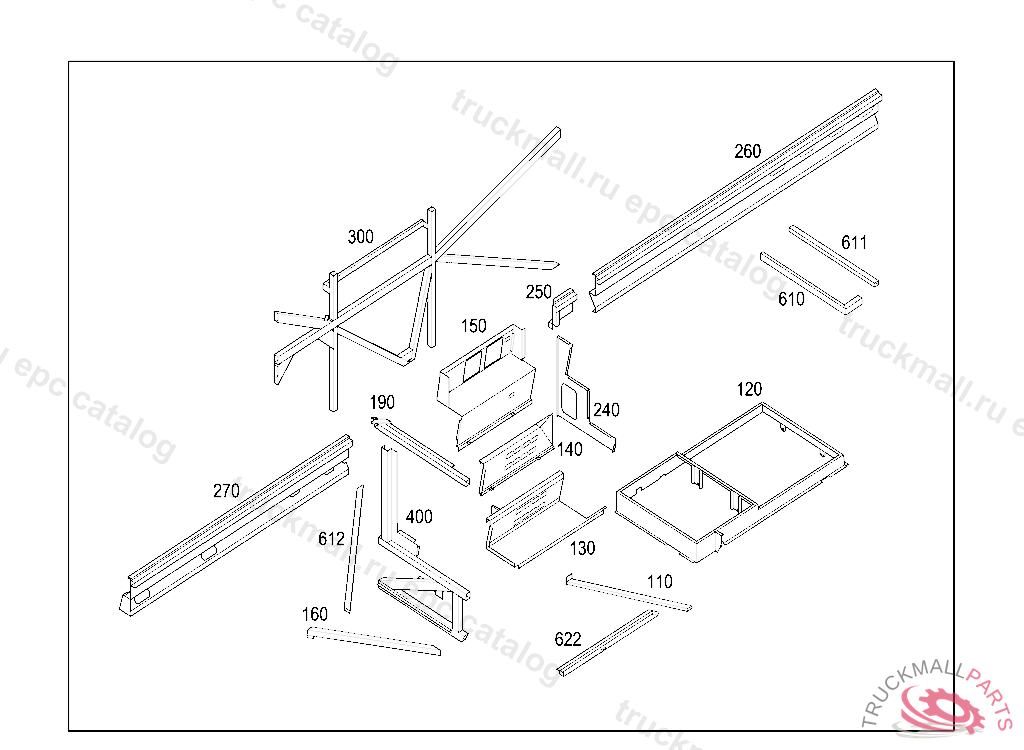

O580 TRAVEGO 16RHD - 629.015 - 66 INSTALLATIONS
Поз.
Артикул
Описание
110
FRAME PART BOTTOM
120
FRAME PART
120
FRAME
130
ROCKER PANEL
130
STEP
130
STEP
140
STEP
140
STEP
140
ROCKER PANEL
150
ROCKER PANEL
150
STEP
150
ROCKER PANEL TOP
160
SUPPORT BOTTOM
190
PEDESTAL
190
PEDESTAL
190
PEDESTAL
190
FRAME PART963LG
190
PEDESTAL
190
FRAME PART935LG
240
SIDE PANEL
250
SUPPORT
250
FRAME PART TOP
260
SIDE MEMBER
260
SIDE MEMBER
270
SIDE MEMBER REAR RIGHT 3247MM
300
SIDE MEMBER. SUPPORT
300
SIDE MEMBER. SUPPORT
300
SIDE MEMBER. SUPPORT
400
SUPPORT
400
FRAME PART
610
FRAME , FROM IDENT NO. WEB 629015 13 100003 ALSO INSTALLED ON WEB 629015 13 520258
611
STRUT
612
SUPPORT
622
SUPPORT BOTTOM 941LG
622
SUPPORT BOTTOM 852LG
999
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
