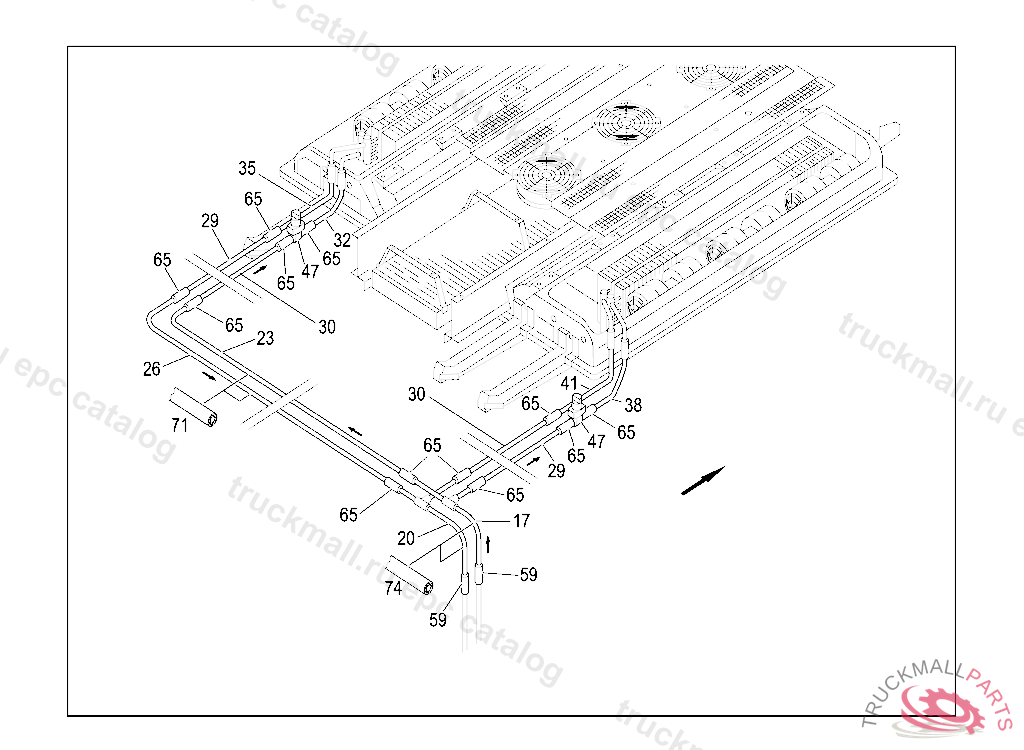

S 411 HD - 629.410 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
17
PIPE LINE ADVANCE
20
PIPE LINE
23
PIPE LINE
26
PIPE LINE RETURN D18X1710MM
29
PIPE LINE
30
PIPE LINE ADVANCE D18X1920MM, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 29.01.2009
32
HEATING PIPE750MM
35
HEATING PIPE. PIPE LINE850LG
38
HEATING PIPE750MM
41
HEATING PIPE850MM
47
WATER VALVE TWO-WAY VALVE WABCO
59
HOSE22X31X100MM
59
HOSE
65
HOSE18X27X100MM
65
HOSE18X27X100MM
71
HOSE18X36MM
71
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
74
INSULATING HOSE
74
INSULATION DIA., D22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
SERVO-D.C. W.GEARBOX
