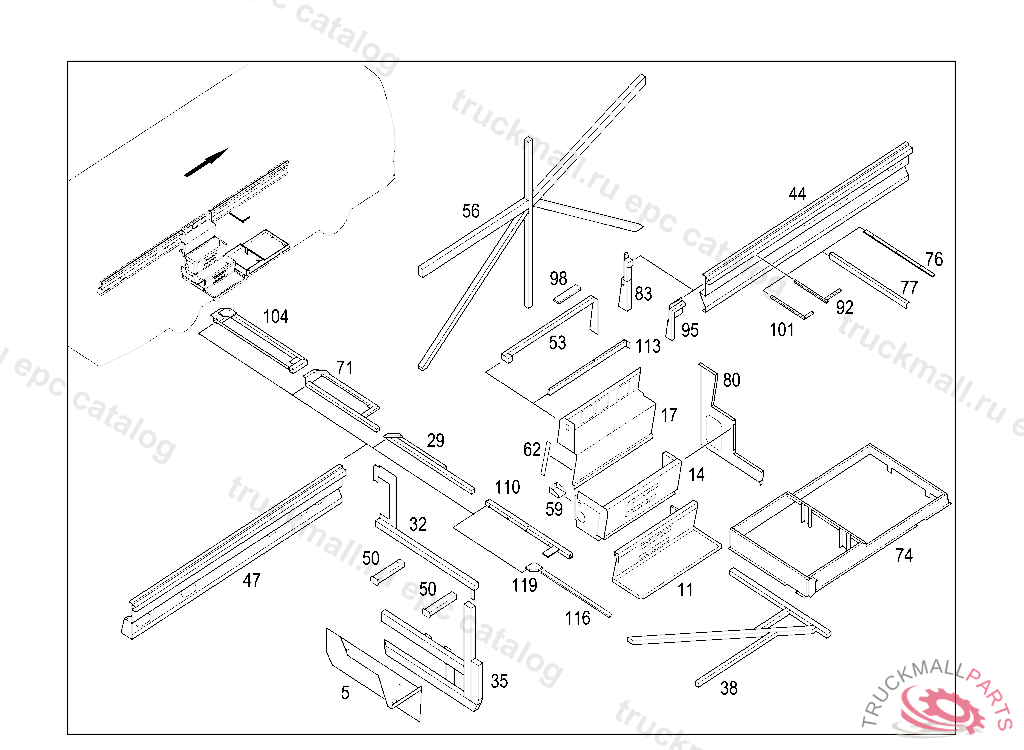

S 411 HD - 629.410 - 66 INSTALLATIONS
Поз.
Артикул
Описание
5
COVERING
11
ROCKER PANEL
11
STEP
11
ROCKER PANEL BOTTOM 935LG
14
ROCKER PANEL
14
ROCKER PANEL
14
ROCKER PANEL
17
ROCKER PANEL
17
ROCKER PANEL
17
ROCKER PANEL
17
ROCKER PANEL
17
ROCKER PANEL TOP 937LG
17
ROCKER PANEL
29
PEDESTAL
29
FRAME PART963LG
32
FRAME
32
SUPPORT
35
FRAME
38
FRAME
44
SIDE MEMBER
44
SIDE MEMBER
47
SIDE MEMBER
47
SIDE MEMBER
50
ANGLE
53
ENTRANCE SUPPORT
53
ENTRANCE SUPPORT
56
SUPPORT
59
CONSOLE
62
SUPPORT
62
PLATE
71
PEDESTAL ,WKK 629410 13 000320
71
FRAME
71
FRAME ,WKK 629410 13 000319
71
PEDESTAL
74
FRAME PART
74
HOLDING DEVICE W.C.
76
PLATE
77
ANGLE
80
SIDE PANEL
83
FRAME TOP
92
SUPPORT , UP TO IDENT NO. WKK 629410 13 100011 EXCEPT FOR 000360, 000362, 000363
95
FRAME PART TOP
98
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
FRAME
104
ENTRANCE SUPPORT
104
ENTRANCE SUPPORT
110
FRAME
113
ENTRANCE SUPPORT
116
COVER PLATE
119
PLATE
