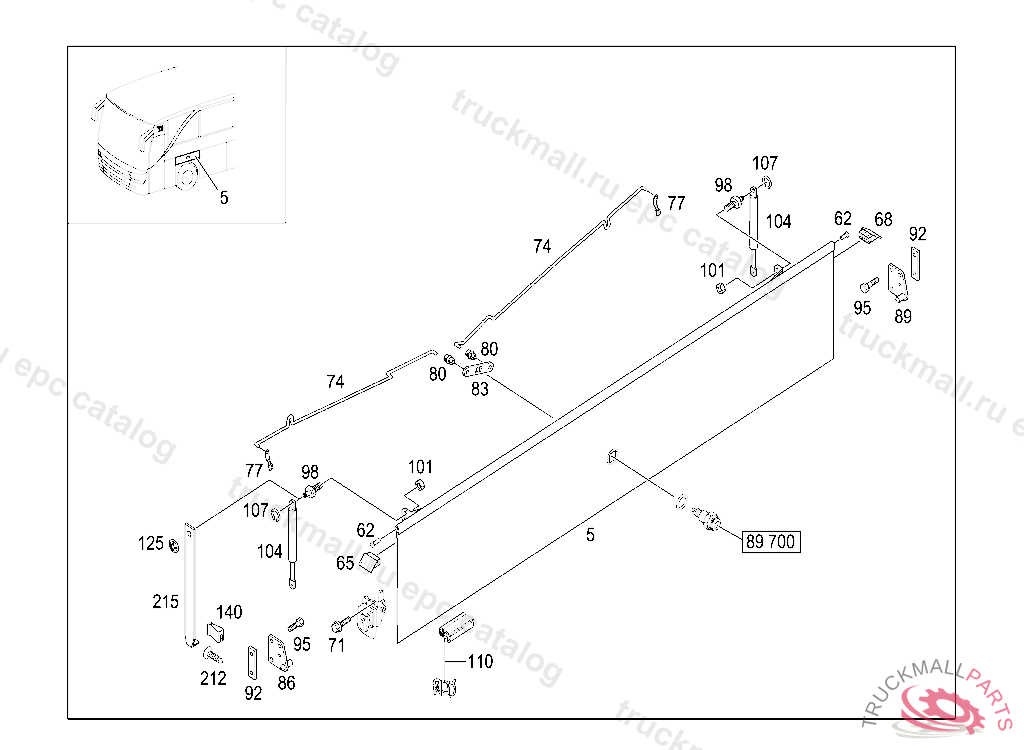

Поз.
Артикул
Описание
5
FLAPL1340 MM
5
FLAPL1340 MM
62
BUSHING
65
LOCKING CAP
68
LOCKING CAP
71
HEXAGON HEAD BOLT
74
RODL567 MM
77
LOCK
80
CLIP , Replaced By: A0039885078
80
CLIP
83
PAWL
86
STRIKER
89
STRIKER
92
PLATE
95
SCREW , Replaced By: N910143008000
98
MOUNTING
101
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
104
SPRING PNEUMATIC SPRING 75 N
104
SPRING PNEUMATIC SPRING 200 N
107
LOCK RING
110
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
LOCK
125
SPRING NUT , Replaced By: A0009943510
140
SPRING
212
TAPPING SCREW BRACKET TO SUPPORT
215
STAY
