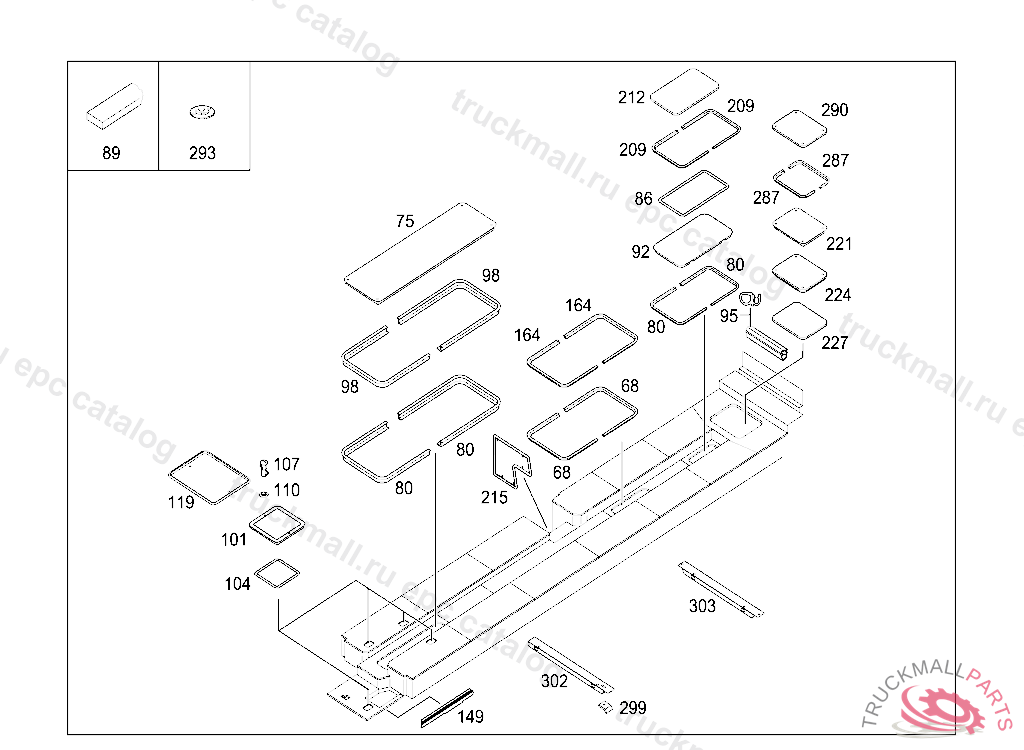

S 411 HD - 629.410 - 68 PANELLING AND LINING
Поз.
Артикул
Описание
86
INSULATION1000X1000X3MM, ABMESSUNG ANGEBEN
89
INSULATION2X12MM/L2000MM
95
GASKET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
EDGING FOR BOTTOM COVER
101
COVER
101
COVER ABS
104
COVERING
107
FASTENER SUPERFIX
110
WASHER PUMP TO CONSOLE
119
COVER314X254 MM
149
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
164
EDGING FOR BOTTOM COVER
164
EDGING
209
EDGING
212
INSULATION
215
COVER
221
COVER
221
COVERING
224
INSULATION
227
INSULATION
287
EDGING
290
FLOOR FLAP
290
BOTTOM COVER1082 X 737 X 12 MM
293
CLAMPING DISC30X23X3,5X0,4MM
299
ANGLE
302
RAIL
303
RETAINING RAIL FOR BOTTOM COVER
