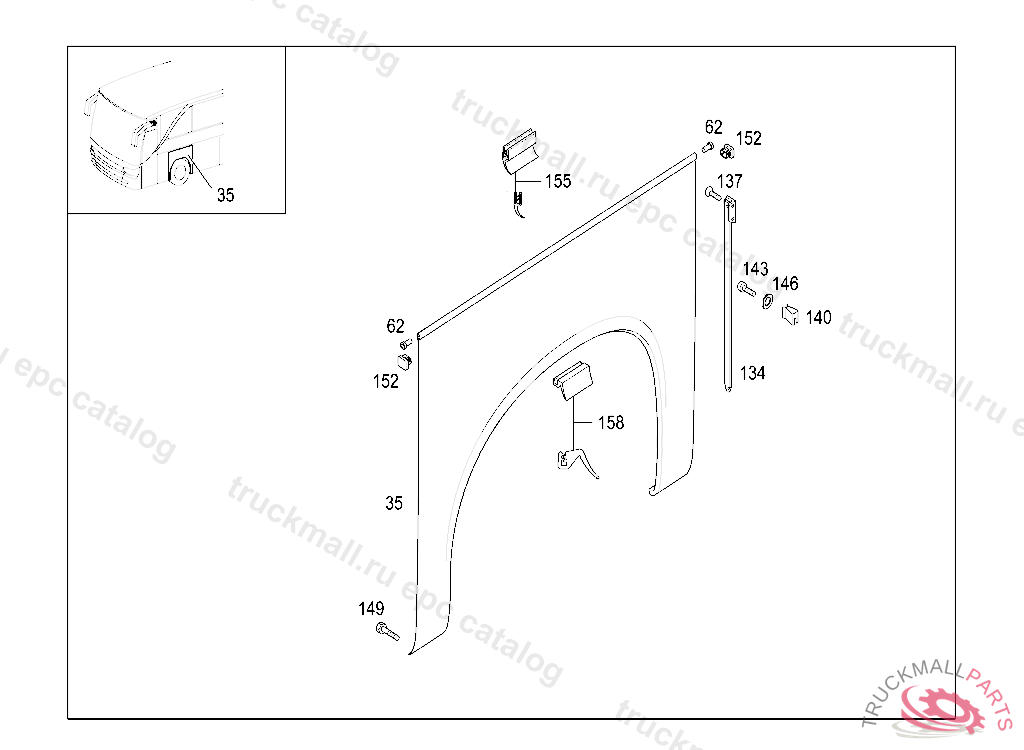

S 411 HD - 629.410 - 75 OUTSIDE FLAPS

35

FLAP , UP TO IDENT NO. WKK 629410 13 000223 EXCEPT FOR 100000 - 520000 UP TO IDENT NO. WKK 629411 13 000632 EXCEPT FOR 100000 - 520000 UP TO IDENT NO. WKK 629411 23 000052 EXCEPT FOR 100000 - 520000

35

FLAP , UP TO IDENT NO. WKK 629410 13 000223 EXCEPT FOR 100000 - 520000 UP TO IDENT NO. WKK 629411 13 000632 EXCEPT FOR 100000 - 520000 UP TO IDENT NO. WKK 629411 23 000052 EXCEPT FOR 100000 - 520000

62

BUSHING

134

STAY

137

SCREWM 6 X 12

140

SPRING

143

SCREWM6X12 TX30

146

SPRING WASHER CABLE TO ALTERNATOR

149

SCREW PIPE ELBOW TO BRACKET M8X12

152

LOCKING CAP

155

SEALING SECTION

158

RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
