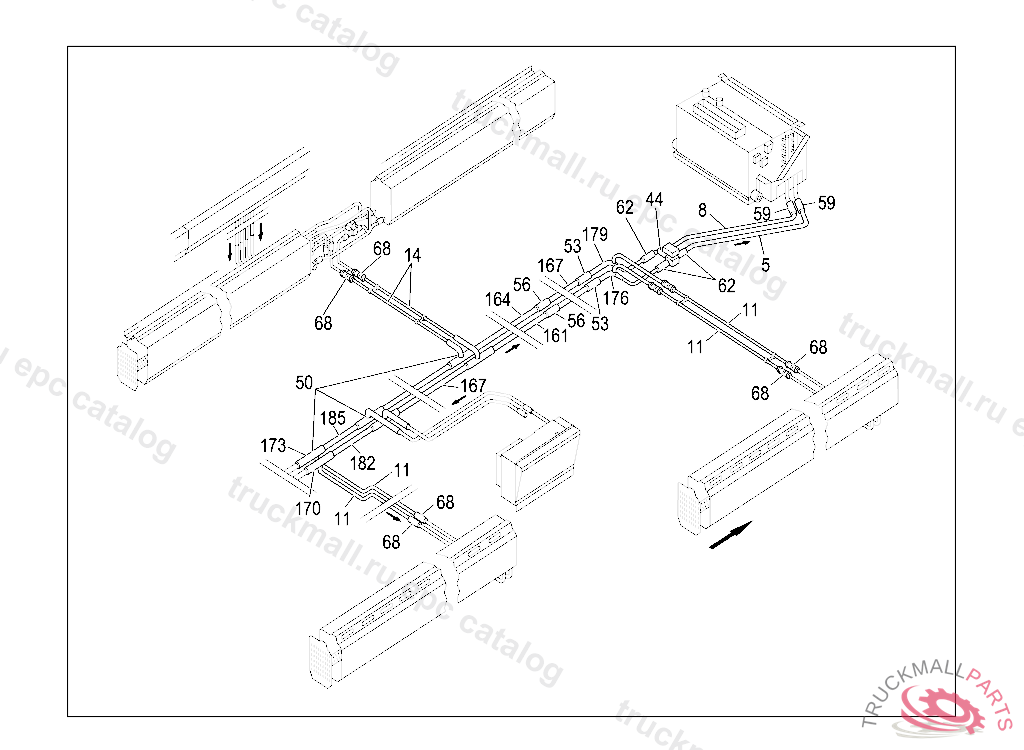

Поз.
Артикул
Описание
5
PIPE LINE
8
PIPE LINE
11
PIPE LINE
14
HEATING PIPE1000MM
44
VALVE THREE-WAY VALVE
44
VALVE , Replaced By: A0038305784
44
VALVE THREE-WAY VALVE, Replaced By: A0048301684
50
DISTRIBUTORD38/15/38-248MM
53
HOSE ,D 209702
53
HOSE LINE CONNECTION 38X50X100 MM
56
HOSE38X50X130MM, Replaced By: N000000004993
56
HOSE38X50X130MM
59
HOSE22X31X100MM
59
HOSE
62
HOSE22 X 31 X 80 MM, TO BE ADAPTED DURING ASSEMBLY
62
HOSE22X31X80MM
68
HOSE15X24X100
68
RADIATOR HOSE. HOSED14,5X23,5X100MM, Replaced By: N000000004960
161
PIPE LINE RETURN D38X2300MM
164
PIPE LINE
167
HEATING PIPE800MM
170
HEATING PIPED38/1120MM
173
HEATING PIPE1180LG
176
PIPE LINE
179
PIPE LINE RETURN
179
PIPE LINE
182
HEATING PIPED38/430MM
185
PIPE LINE
999
SERVO-D.C. W.GEARBOX
