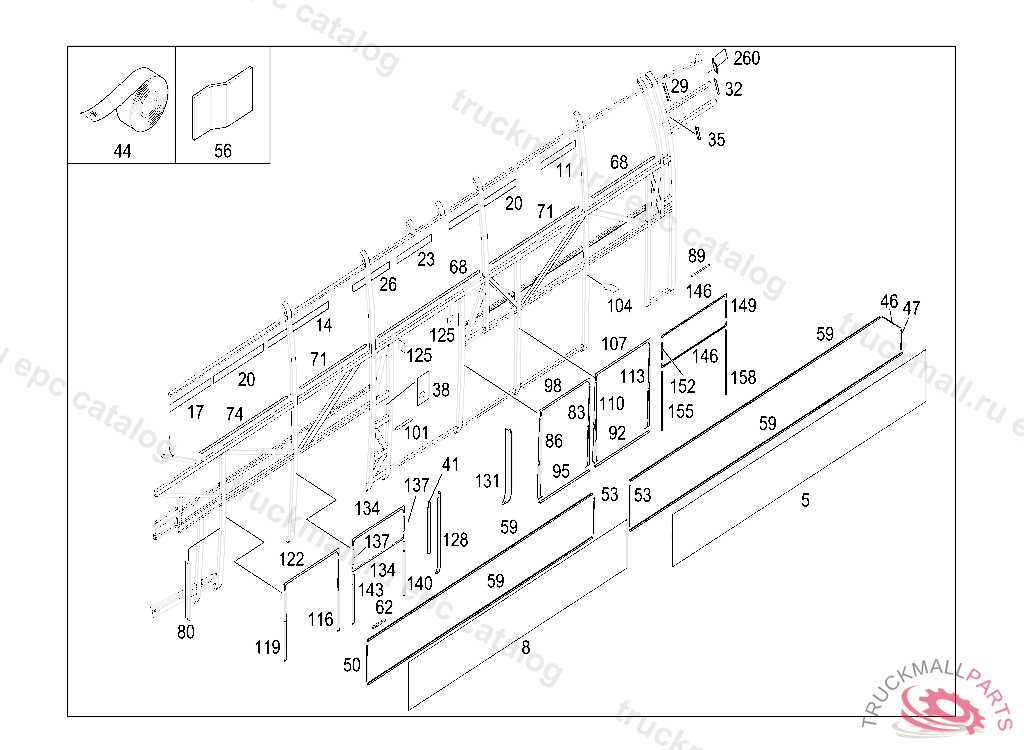

S 411 HD - 629.410 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PANELLING
8
PANELLING
11
PANELLING AIR INTAKE 199MM
14
PANELLING
17
PANELLING AIR INTAKE 199MM
20
PANELLING1329MM
23
PANELLING
26
PANELLING
29
ANGLE
32
ANGLE
35
ANGLE275LG
38
PANELLING SPRING SUPPORT
41
ANGLE
44
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
ADHESIVE TAPE
46
PAD
47
PAD
50
PAD
53
PAD
56
BRACKET150LG
59
RAIL
59
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
PAD
68
ANGLE SIDE WINDOW PANES 1735MM
71
ANGLE1270MM
74
ANGLE
80
ANGLE1000LG
83
ANGLE1090MM
86
ANGLE LATERAL 1090MM
89
ANGLE
92
ANGLE1229MM
95
ANGLE BOTTOM 984 MM
98
ANGLE TOP 984 MM
101
ANGLE TOP 220LG
104
REINFORCEMENT
107
ANGLE
110
ANGLE LEFT
113
ANGLE RIGHT
116
ANGLE
119
ANGLE1090LG
122
ANGLE
125
PAD20X8X28MM
128
PANELLING DOOR CENTRAL PILLAR
131
PANELLING DOOR CENTRAL PILLAR 1198MM
134
ANGLE TOP
137
ANGLE
140
ANGLE
143
ANGLE LATERAL
146
ANGLE TOP
149
ANGLE LATERAL
152
ANGLE LATERAL
155
ANGLE LATERAL
158
ANGLE
260
ANGLE
